ASUS ROG STRIX Z270F GAMING MOTHERBOARD

REO REO REO
REO REO
Rs.

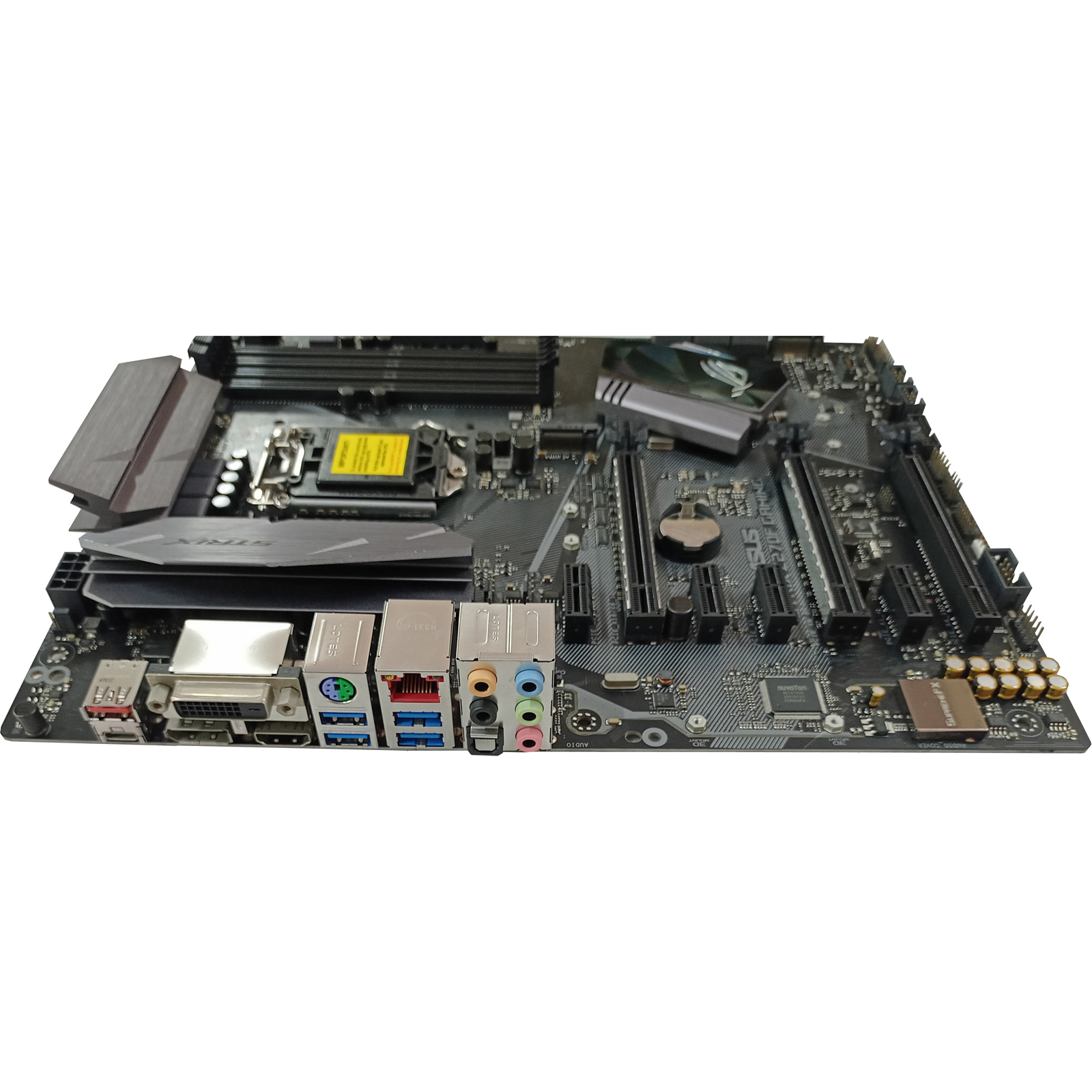

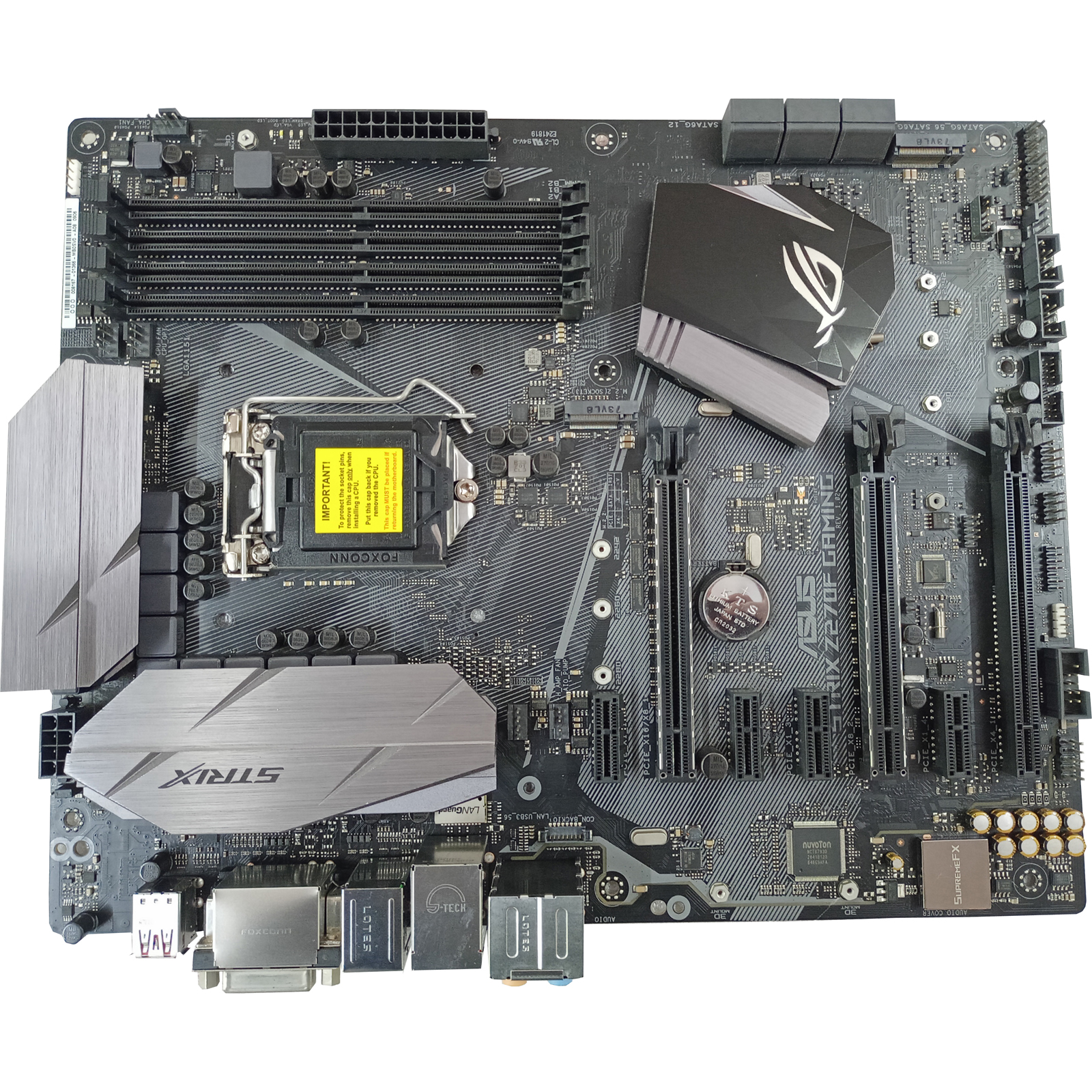

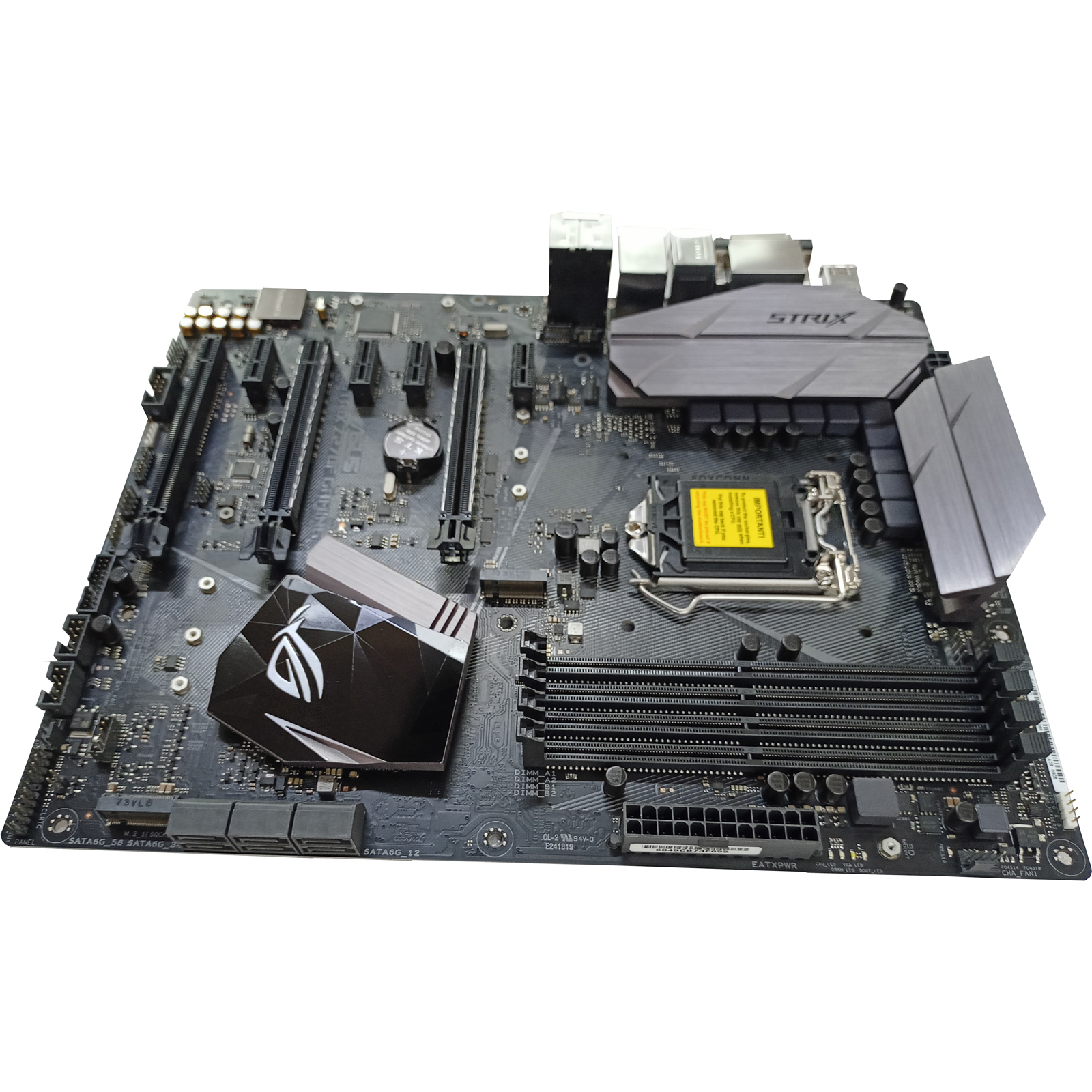

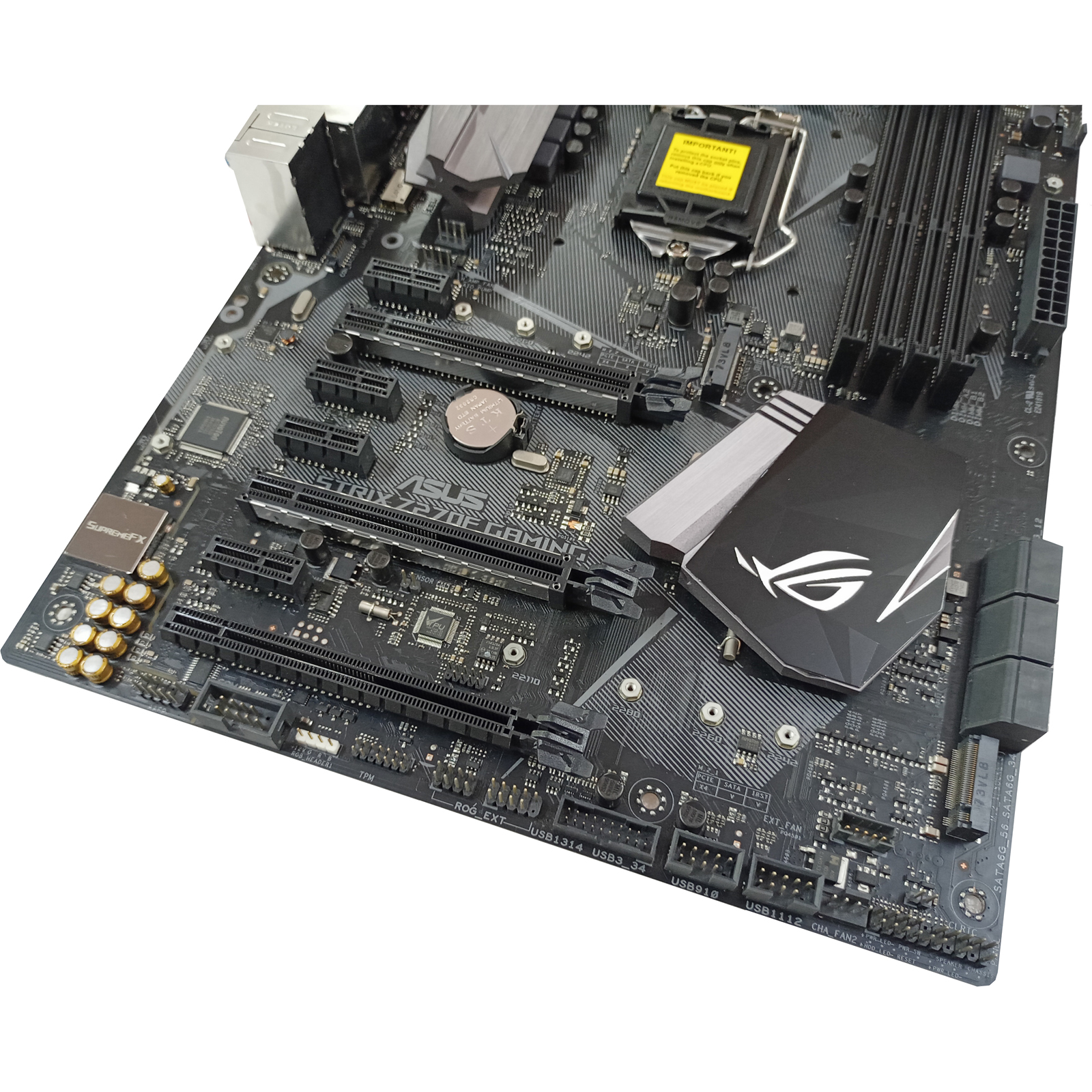

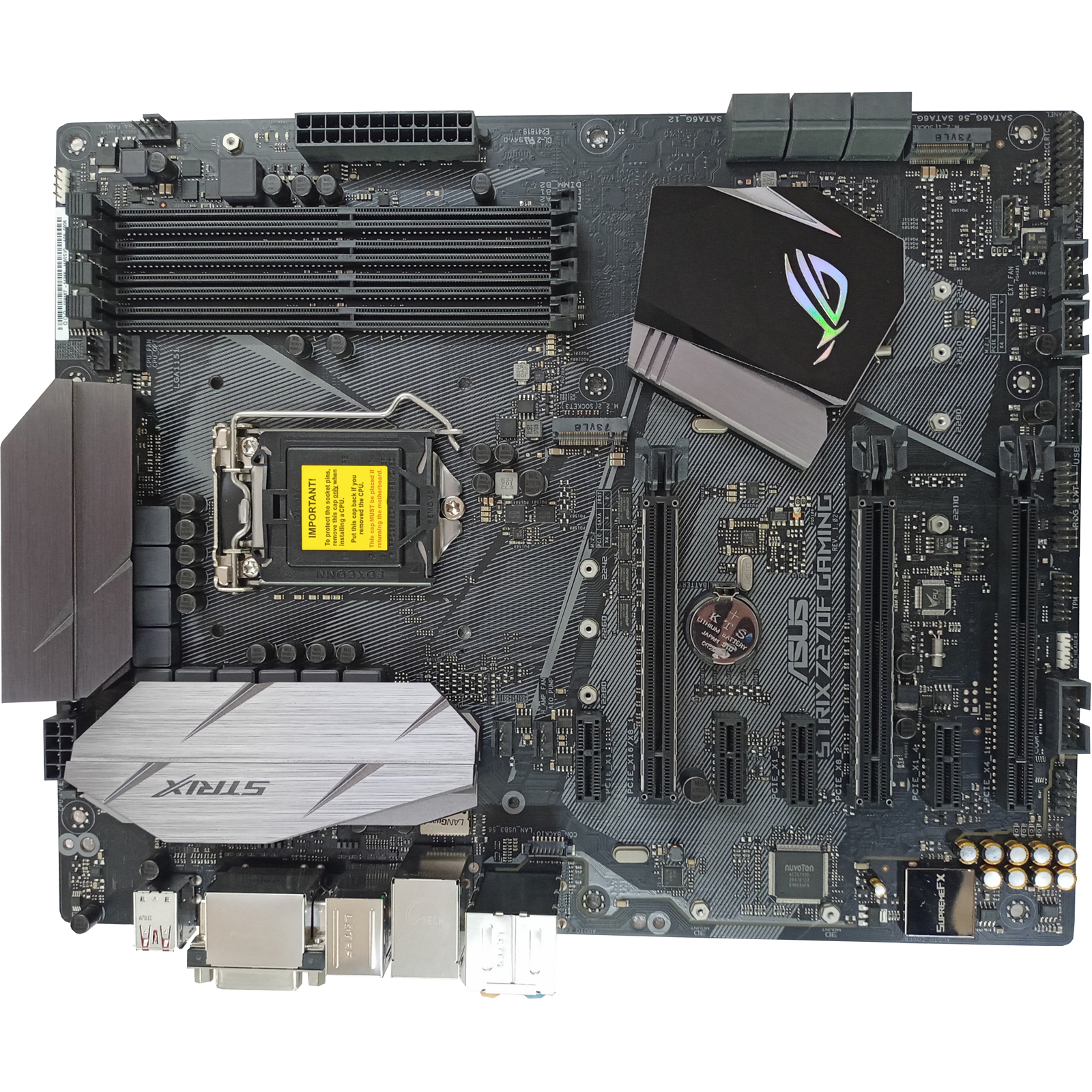

ASUS ROG STRIX Z270F GAMING MOTHERBOARD

Intel LGA-1151 ATX Z270 gaming motherboard with Aura Sync RGB LED, DDR4 3866MHz, Dual M.2, USB 3.1 Type C, SATA 6Gb/s, and HDMI

The successor to the Z170 Pro Gaming motherboard series

Aura Sync RGB LED lighting and 3D printable modules for ultimate customizability

5-Way Optimization — One-click full-system tuning handles everything from overclocking to cooling and beyond

Next-gen connectivity — Onboard dual M.2 slots for up to 32Gbps of PCIe bandwidth, and USB 3.1 Type-A and Type-C connectors

ROG SupremeFX audio — Renowned audio performance with dual headphone amplifiers, leveled-up Sonic Studio III, and Sonic Radar III

Gaming networking — Best-in-class Intel® Gigabit Ethernet, LANGuard, and GameFirst technology

Patent-pending ASUS SafeSlot for enhanced PCIe retention and shearing resistance







Features/Specifications:




ASUS ROG STRIX Z270F GAMING MOTHERBOARD



  • General Features:
  • Intel® Socket 1151for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14nm CPU
  • The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  • Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports
  • Integrated Graphics Processor- Intel® HD Graphics support
  • Supports HDMI with max. resolution 4096 x 2160 @ 24Hz
  • Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz
  • Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
  • Maximum shared memory of 1024 MB (for iGPU exclusively)
  • Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Expansion Slots:
  • 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
  • 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
  • 4 x PCIe 3.0/2.0 x1
  • I/O Ports:
  • 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
  • 2 x USB 3.1 port(s) (Type-A + USB Type-CTM, Support 3A power output)
  • 6 x USB 2.0 port(s)
  • 4 x USB 3.1 Gen 1 (blue)
  • 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-D
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
  • Internal I/O Ports:
  • 1 x COM port header
  • 1 x AAFP connector
  • 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
  • 2 x RGB Header(s)
  • 3 x 3D Mount screw port(s)
  • 1 x ROG extension (ROG_EXT) header(s)
  • 1 x High AMP Fan Header
  • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  • 1 x CPU OV
  • 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
  • 6 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 2 x Chassis Fan connector(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x System panel(s) (Chassis intrusion header is inbuilt)
  • 1 x Clear CMOS jumper(s)
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x 14-1 pin TPM connector
  • 1 x T_Sensor Connector
  • 1 x AIO PUMP Header
  • Supported Processors:
  • Intel® Socket 1151for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® ProcessorsSupports Intel® 14nm CPU
  • Supports Intel® Turbo Boost Technology 2.0
  • Intel® Z270
  • Memory:
  • 4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • Hyper DIMM support is subject to the physical characteristics of individual CPUs.
