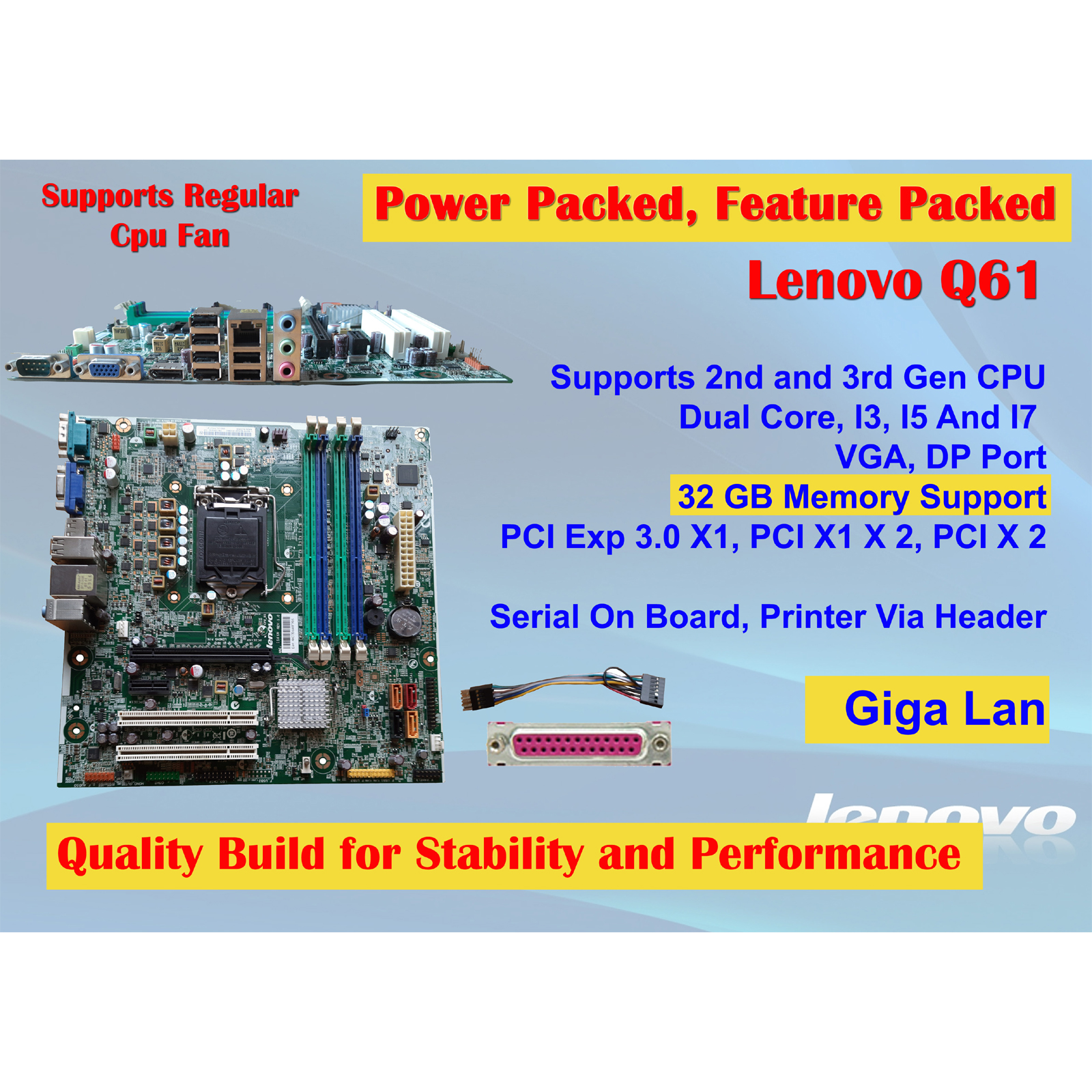

Lenovo IS6XM Q61 MOTHERBOARD(SOCKET 1155, 2 PCI Slots, 1 Serial(com) Port, 1 Parallel Port)

REO REO REO
Rs.



Upgrade your computer with a Lenovo IS6XM Q61 Socket 1155 mATX Motherboard!

Based on the Lenovo IS6XM Q61 chipset, the Lenovo IS6XM Q61 supports Intel Core I7, Core I5, Core I3, Pentium Dual Core and Pentium Socket 1155 processors. Four 240-pin DDR3 DIMM slots support up to 32 GB of DDR3.

Connect your PC to a network via its built-in 10/100/1000 Ethernet port. Integrated Intel® Q61 Express Chipset provides superior graphics support, or you can add a high-end video card to the PCI Express x16 slot. There is plenty of room for expansion with one PCI x1 slots & two PCI Slots.


The Lenovo IS6XM Q61 includes four on-board SATA connectors so you can add high speed SATA drives. Build a powerful socket 1155 system with this Lenovo IS6XM Q61 Motherboard. Order today!


 Features/Specifications:


  • Lenovo IS6XM Q61 MOTHERBOARD(SOCKET 1155,Supp. 2nd & 3rd Gen. Intel CPUs, 1 Serial(com) Port, 1 Parallel Port)
  • General Features:
  • mATX form factor
  • Intel® Q61 Express Chipset
  • Socket 1155 architecture
  • Supports up to 32 GB DDR3 memory
  • 6-Channel HD audio CODEC, Realtek ALC662 6-channel High Definition audio CODEC
  • Giga Lan
  • 4 X SATA III connector(s)
  • Expansion Slots:
  • One (1) PCI Express x16 slot
  • One (1) PCI  x1 slots
  • Four (4) 240-pin DDR3 DIMM sockets
  • Two (2) PCI Slots

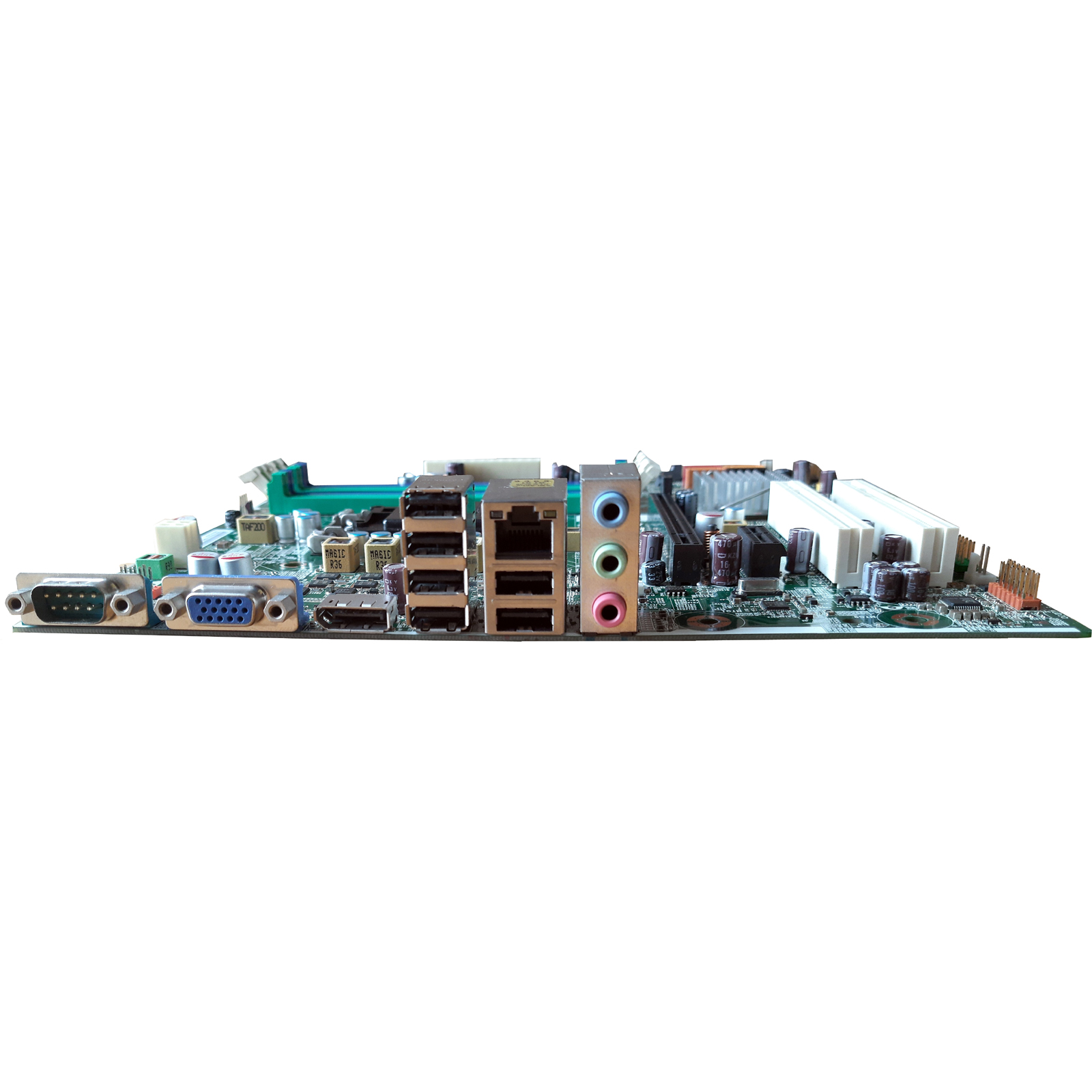

  • I/O Ports:
  • 1 X Audio port (Line Out/Line In/Mic In)
  • 1 X RJ-45 port
  • 1 X Display Port
  • 1 X D-Sub (VGA) port(s)
  • 6 X USB2.0 port(s)
  • 1 X Serial Port(9-Pin)
  • Internal I/O Ports:
  • 1 X 24-pin ATX Power Supply connector
  • 1 X 4-pin 12V Power connector
  • 1 X 4-pin CPU_FAN connector
  • 2 X 4-pin SYS_FAN connector
  • 1 X Front Panel switch/LED header
  • 1 X Front panel audio header
  • 2 X USB 2.0 header(Support additional 4 USB ports)
  • 4 X SATA III 6Gb/s connector(s)
  • 1 X CLR_CMOS header
  • 1 X Parallel port header (LPT)
  • Box Dimensions : 27.5 W x 5 H x 25 D (CM)
  • Box Weight : 770 grams
  • Product Dimensions : 24.5 W x 3.6 H x 24.5 D (CM)
  • Product Weight : 540 Grams

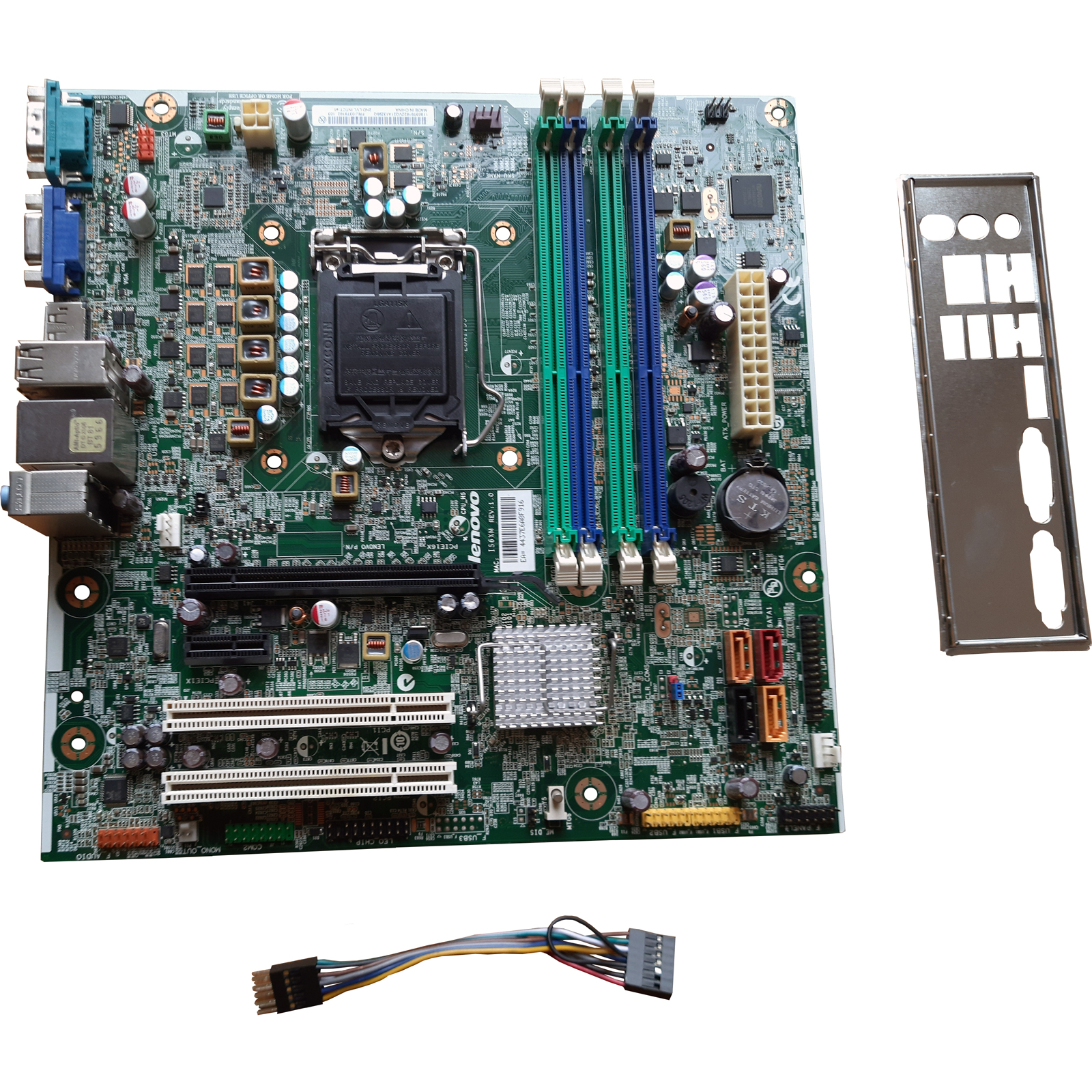

Package Includes:


  • Lenovo IS6XM Q61 MOTHERBOARD(SOCKET 1155,Supp. 2nd & 3rd Gen. Intel CPUs, 1 Serial(com) Port, 1 Parallel Port)
  • Driver Disc
  • SATA cable
  • I/O shield

Additional Information:


  • Notes:
  • Model: IS6XM Q61
  • Product Requirements:
  • ATX/mATX case
  • Power supply
  • Supported processor
  • Supported RAM
  • Rest of system
