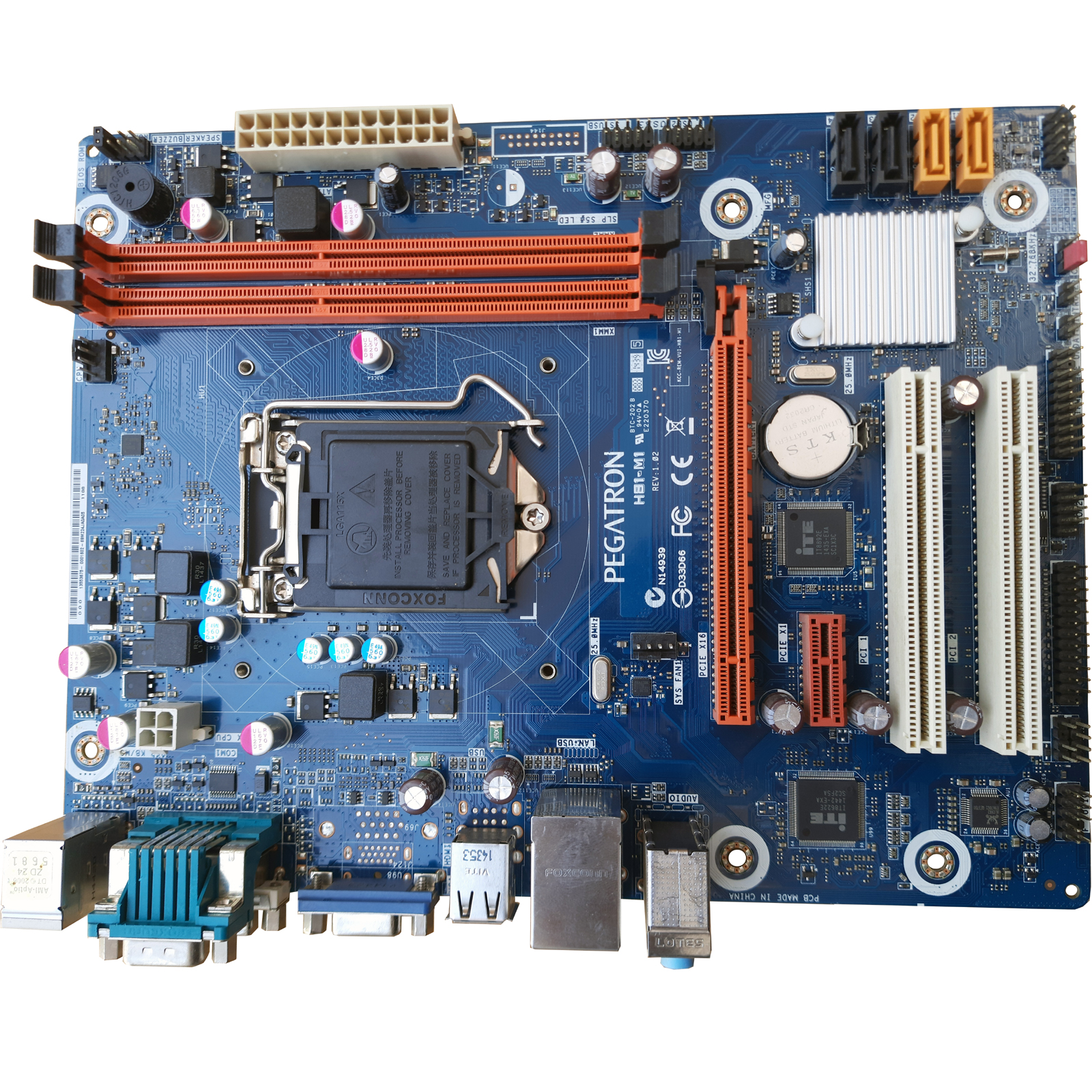

Upgrade your computer with a Pegatron H81-M1 H81 Socket 1150 mATX Motherboard!
Based on the Pegatron H81-M1 H81 chipset, the Pegatron H81-M1 H81 supports Core I7, Core I5, Core I3, Pentium Dual Core and Celeron Socket 1150 processors with up to 1600 MHz front side bus. Two 240-pin DDR3 DIMM slots support up to 16 GB of DDR3 1600, 1333 or 1067 MHz bus speeds.
Connect your PC to a network via its built-in 10/100/1000 Ethernet port. Integrated Intel Graphics provides superior graphics support, or you can add a high-end video card to the PCI Express x16 slot. There is plenty of room for expansion with two PCI slots & one x1 slot.
The Pegatron H81-M1 H81 chipset includes four on-board SATA connectors so you can add high speed SATA drives. Build a powerful socket 1150 system with this Pegatron H81-M1 Socket 1150 mATX Motherboard. Order today!
|
Features/Specifications: |
|
|
|
- Pegatron H81-M1 H81 Socket 1150 Motherboard(2 Serial(com) & 1 Parallel(LPT) Ports, 2 PCI Slots)
- General Features:
- mATX form factor
- Intel® H81 Express Chipset
- Socket 1150 architecture
- Supports up to 16 GB DDR3 1600/1333/1067 MHz system memory
- Integrated Intel Graphics
- Realtek 5.1 Channel Audio Codec
- Realtek 10/100/1000 LAN Controller
- Four (4) Serial ATA
- Expansion Slots:
- One (1) PCI Express x16 slot
- Two (2) PCI slots
- Two (2) 240-pin DDR3 DIMM sockets
- One (1) x1 Slot

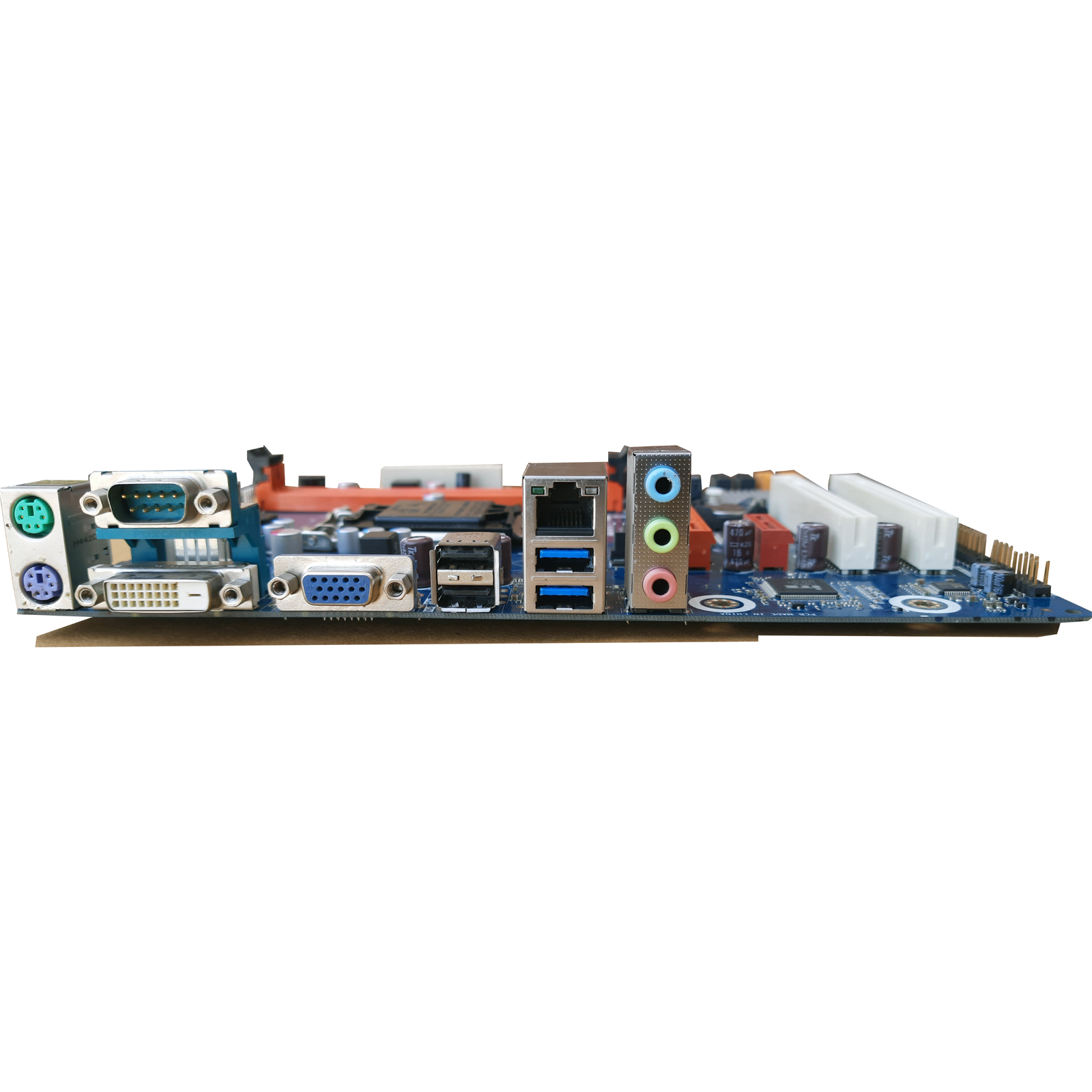

- I/O Ports:
- Two (2) PS/2 ports
- One (1) 9-pin Serial port
- One (1) VGA port
- One (1) DVI port
- Two (2) USB 2.0 ports
- Two (2) USB 3.0 ports
- One (1) RJ-45 Ethernet port
- 5.1CH, HDA, based on Realtek ALC662
http://en.all-specs.net/model/1031843/Internal I/O Ports:
-
-
1 X 24-pin ATX Power Supply connector
-
1 X 4-pin 12V Power connector
- 2 x USB 2.0
- 4 x SATA connectors (supports up to 4 hard drives)
- 1 x audio front panel connector
-
1 x Serial port header (COM)
- 1 x Parallel port header (LPT)
-
1 X 4-pin SYS_FAN connector
- Box Dimensions : 27.5 W x 5 H x 25 D (CM)
- Box Weight : 650 grams
- Product Dimensions : 24.5 W x 3.6 H x 18.8 D (CM)
- Product Weight : 440 Grams
|
|
Package Includes: |
|
|
|
- Pegatron H81-M1 H81 Socket 1150 Motherboard(2 Serial(com) & 1 Parallel(LPT) Ports, 2 PCI Slots)
- Driver Disc
- SATA cable
- I/O shield
|
|
Additional Information: |
|
|
|
- Product Requirements:
- ATX/mATX case
- Power supply
- Supported processor
- Supported RAM
- Rest of system
|
|
