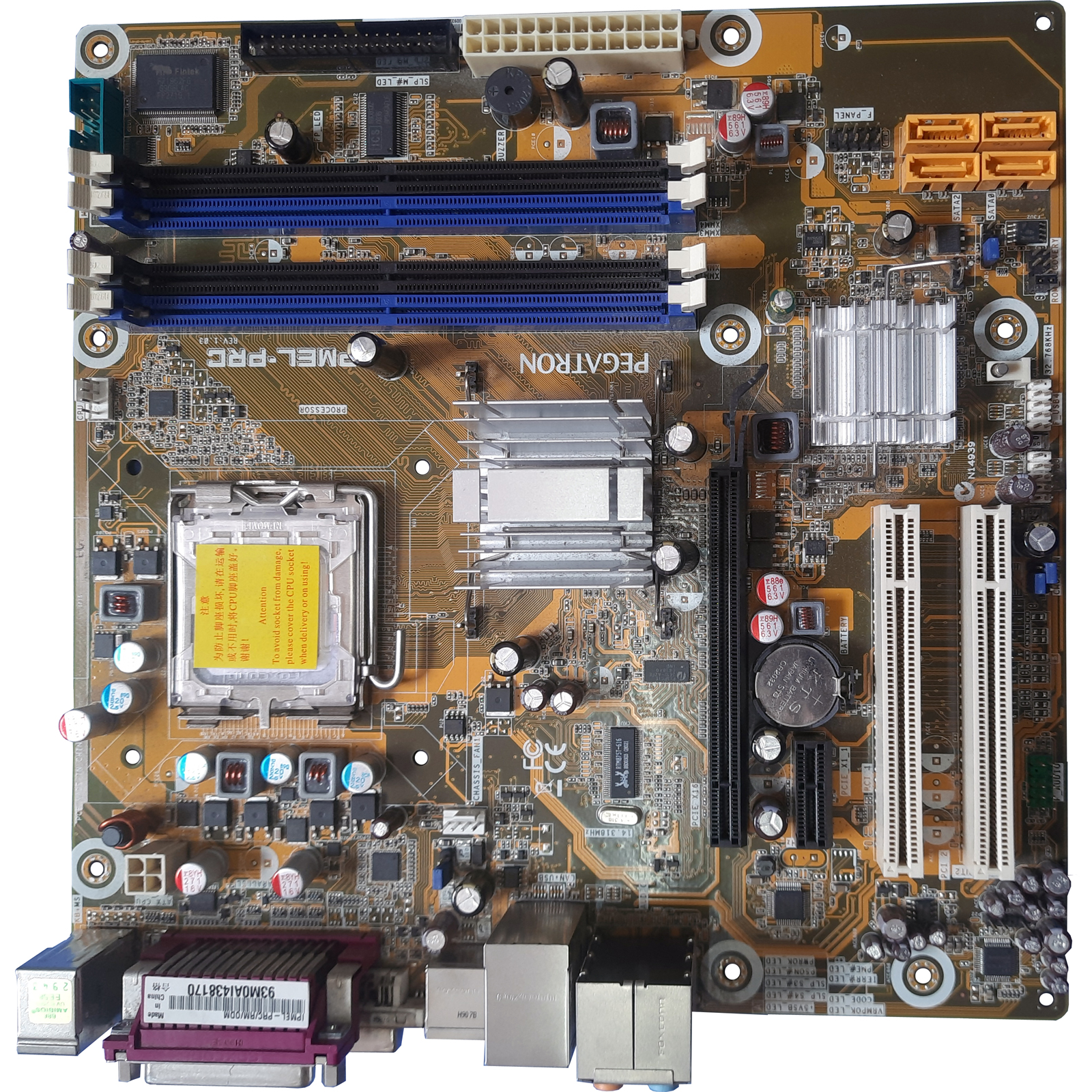

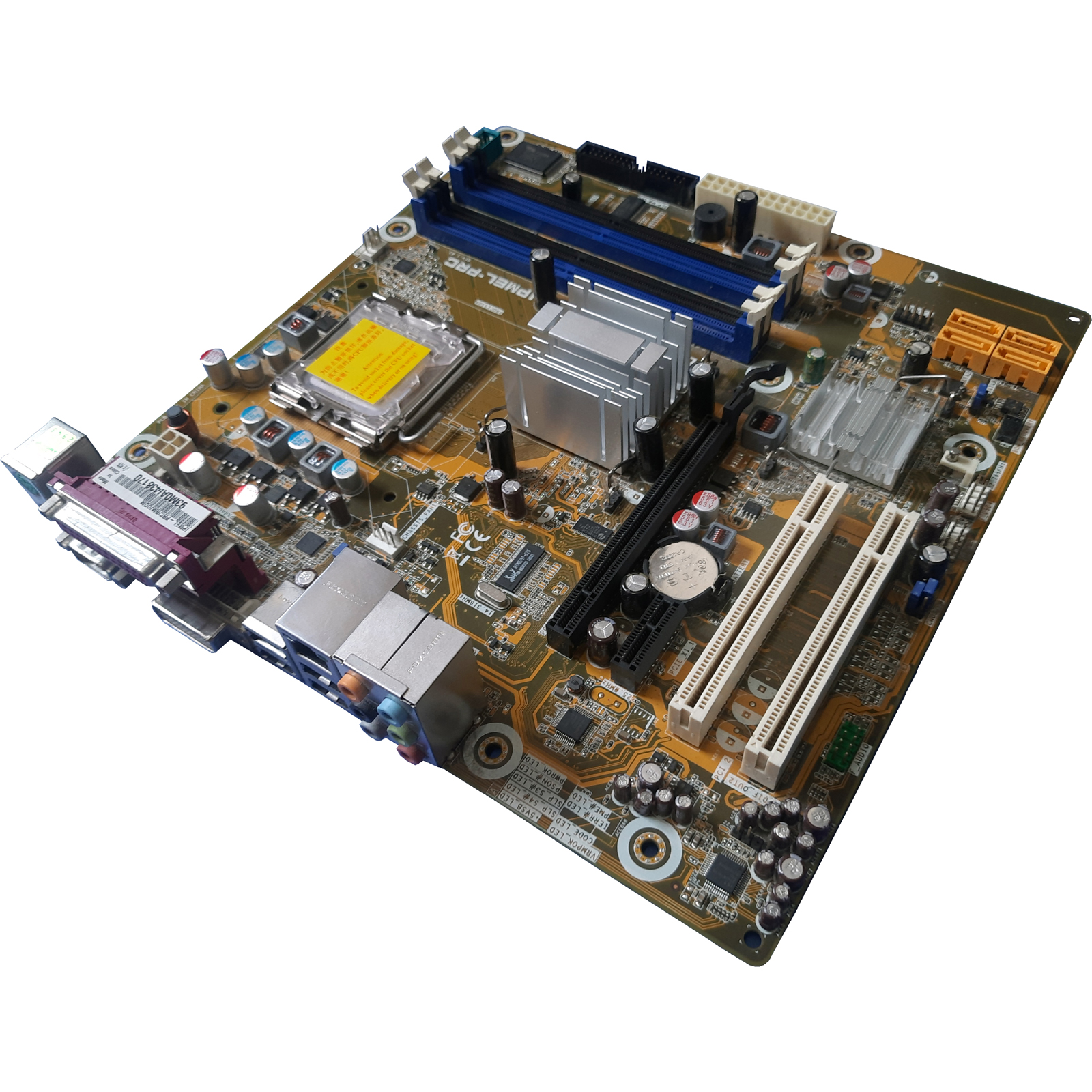

Upgrade your computer with a Pegatron IPMEL-PRC G41 Socket 775 mATX Motherboard!
Based on the Pegatron IPMEL-PRC G41 chipset, the Pegatron IPMEL-PRC G41 supports Core 2 Duo, Pentium D, Pentium 4 and Celeron Socket 775 processors with up to 800 MHz front side bus. Two 240-pin DDR2 DIMM slots support up to 8 GB of DDR2 533, 667 or 800 MHz bus speeds.
Connect your PC to a network via its built-in 10/100 Ethernet port. Integrated Intel Graphics provides superior graphics support, or you can add a high-end video card to the PCI Express x16 slot. There is plenty of room for expansion with two PCI slots & one x1 slot.
The Pegatron IPMEL-PRC G41 chipset includes four on-board SATA connectors so you can add high speed SATA drives. Build a powerful socket 775 system with this Pegatron IPMEL-PRC G41 Socket 775 mATX Motherboard. Order today!
|
Features/Specifications: |
|
|
|
- Pegatron IPMEL-PRC G41 Socket 775 Motherboard(Onboard Serial & Parallel Ports, Supports DDR2 Ram)
- General Features:
- mATX form factor
- Intel® G41 Express Chipset
- Socket 775 architecture
- Supports up to 8 GB DDR2 800/667/533 MHz system memory
- Integrated Intel Graphics
- Realtek 6 Channel Audio Codec
- Realtek 10/100M LAN Controller
- Four (4) Serial ATA
- One (1) IDE controller
- Expansion Slots:
- One (1) PCI Express x16 slot
- Two (2) PCI slots
- Four (4) 240-pin DDR2 DIMM sockets
- One (1) x1 Slot

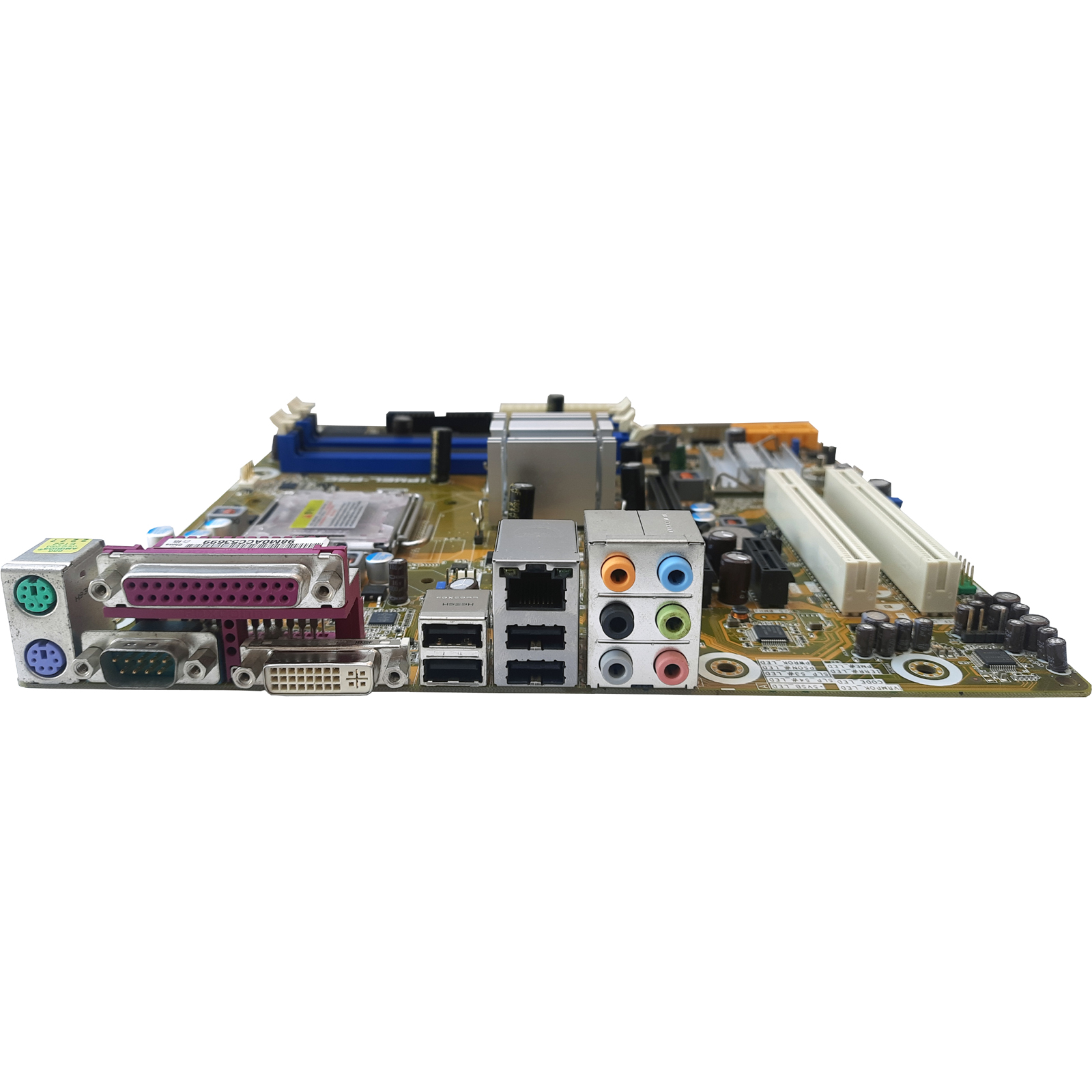

- I/O Ports:
- Two (2) PS/2 ports
- One (1) 9-pin Serial port
- One (1) Parallel port
- One (1) DVI por(Includes DVI to VGA Adapter)
- Four (4) USB 2.0 ports
- One (1) RJ-45 Ethernet port
- 6 (Six) 3.5 mm audio jacks
- Internal I/O Ports:
-
1 X 24-pin ATX Power Supply connector
-
1 X 4-pin 12V Power connector
- 2 x USB 2.0
- 4 x SATA connectors (supports up to 4 hard drives)
- 1 x floppy disk drive connector
- 1 x audio front panel connector
-
1 X Serial port header (COM)
-
1 X 4-pin SYS_FAN connector
- Supported Processors:
- Intel Core 2 Duo processor with a 1333 or 1066 or 800 MHz system bus
- Intel Pentium D processor with an 800 or 533 MHz system bus
- Intel Pentium 4 processor with an 800 or 533 MHz system bus
- Intel Celeron D processor with a 533 MHz system bus
- Box Dimensions : 27.5 W x 5 H x 25 D (CM)
- Box Weight : 830 grams
- Product Dimensions : 24.5 W x 3.6 H x 18.8 D (CM)
- Product Weight : 590 Grams
|
|
Package Includes: |
|
|
|
- Pegatron IPMEL-PRC G41 Socket 775 Motherboard(Onboard Serial & Parallel Ports, Supports DDR2 Ram)
- Driver Disc
- SATA cable
- I/O shield
|
|
Additional Information: |
|
|
|
- Notes:
- Model: IPMEL-PRC G41
- Product Requirements:
- ATX/mATX case
- Power supply
- Supported processor
- Supported RAM
- Rest of system
|
|
