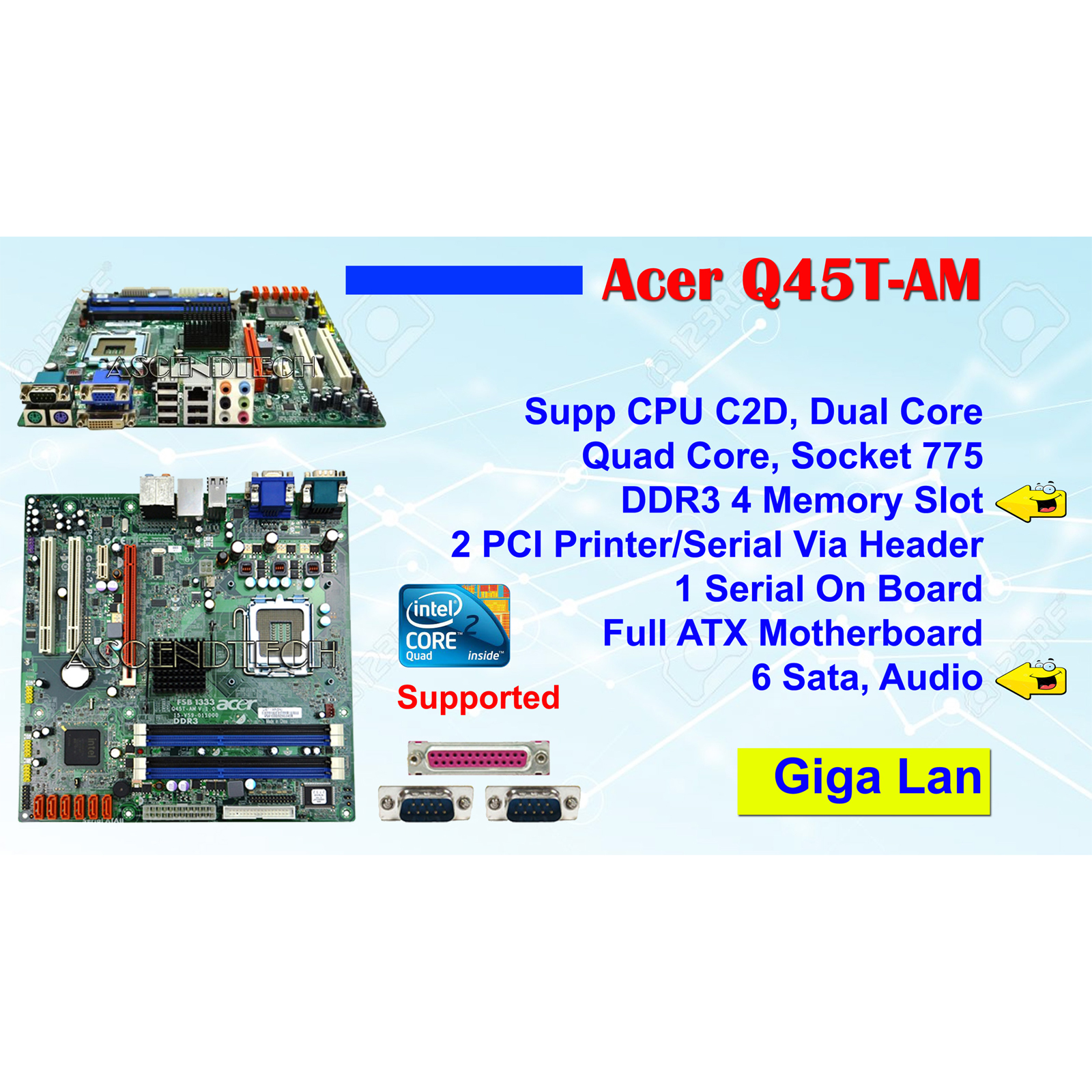

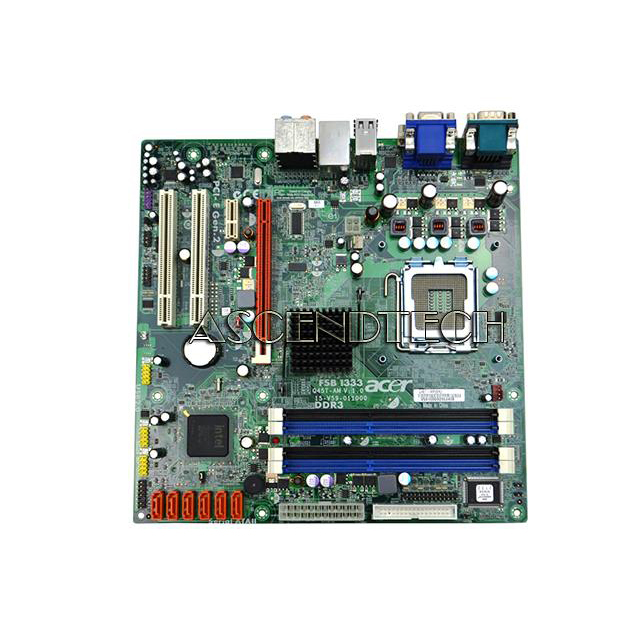

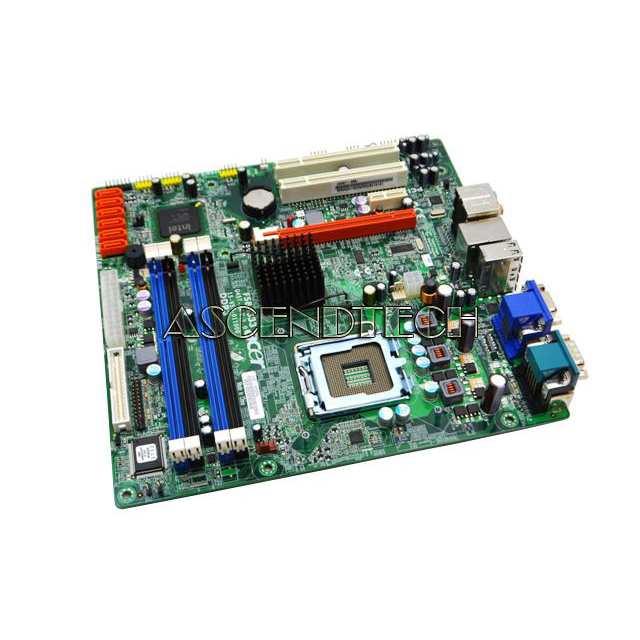

Upgrade your computer with a Acer Q45T-AM G41 Socket 775 mATX Motherboard!
Based on the Acer Q45T-AM G41 chipset, the Acer Q45T-AM supports Core 2 Quad, Core 2 Duo, Pentium Dual Core and Celeron Dual Core Socket 775 processors with up to 1333 MHz front side bus. Four 240-pin DDR3 DIMM slots support up to 8 GB of DDR3 1066 or 1333 MHz bus speeds.
Connect your PC to a network via its built-in 10/100/1000 Ethernet port. Integrated Intel Graphics provides superior graphics support, or you can add a high-end video card to the PCI Express x16 slot. There is plenty of room for expansion with two PCI slots & one x1 slot.
The Acer Q45T-AM G41 chipset includes six on-board SATA connectors so you can add high speed SATA drives. Build a powerful socket 775 system with this Acer Q45T-AM G41 Socket 775 mATX Motherboard. Order today!
|
Features/Specifications: |
|
|
|
- Acer Q45T-AM G41 Socket 775 Motherboard(2 Serial(COM) & 1 Parallel(LPT) Ports, Supports DDR3 Ram)
- General Features:
- mATX form factor
- Intel® G41 Express Chipset
- Socket 775 architecture
- Supports up to 8 GB DDR3 1333/1066 MHz system memory
- Integrated Graphics : Intel GMA x4500
- Realtek AC888 - High Definition
- Intel Gigabit - 10/100/1000 Mbps Lan
- Six (6) Serial ATA
- Expansion Slots:
- One (1) PCI Express x16 slot
- Two (2) PCI slots
- Four (4) 240-pin DDR3 DIMM sockets
- One (1) x1 Slot

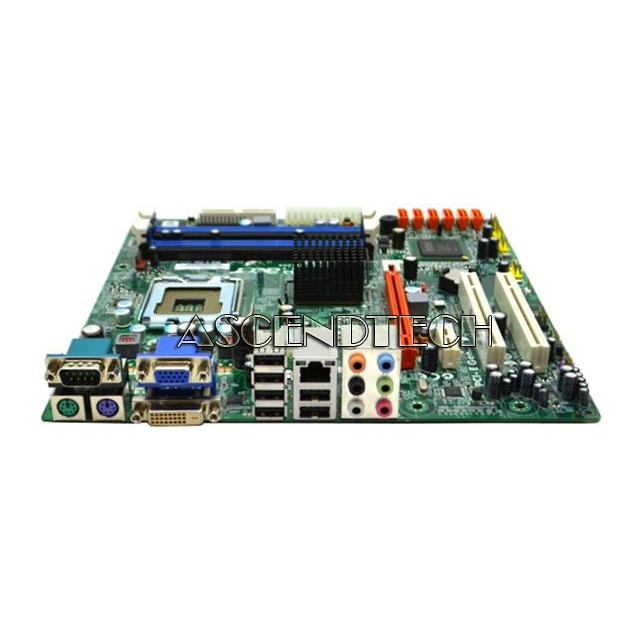

- I/O Ports:
- Two (2) PS/2 ports
- One (1) 9-pin Serial port
- One (1) DVI port
- One (1) VGA port
- Six (6) USB 2.0 ports
- One (1) RJ-45 Ethernet port
- 6 (Six) 3.5 mm audio jacks
- Internal I/O Ports:
-
1 X 24-pin ATX Power Supply connector
-
1 X 4-pin 12V Power connector
- 3 x USB 2.0
- 6 x SATA connectors (supports up to 6 hard drives)
- 1 x Battery Socket (3V)
- 1 x Clear CMOS Jumper
- 1 x 4-pin CPU Fan connector
- 1 x floppy disk drive connector
- 1 x audio front panel connector
-
1 X 3-pin SYS_FAN connector
- Supported Processors:
- Intel Core 2 Quad
- Intel Core 2 Duo
- Intel Pentium Dual Core
- Intel Celeron Dual Core
- Box Dimensions : 27.5 W x 5 H x 25 D (CM)
- Box Weight : 820 grams
- Product Dimensions : 24.5 W x 3.6 H x 24.5 D (CM)
- Product Weight : 570 Grams
|
|
Package Includes: |
|
|
|
- Acer Q45T-AM G41 Socket 775 Motherboard(2 Serial(COM) & 1 Parallel(LPT) Ports, Supports DDR3 Ram)
- Driver Disc
- SATA cable
- I/O shield
|
|
Additional Information: |
|
|
|
- Product Requirements:
- ATX/mATX case
- Power supply
- Supported processor
- Supported RAM
- Rest of system
|
|
