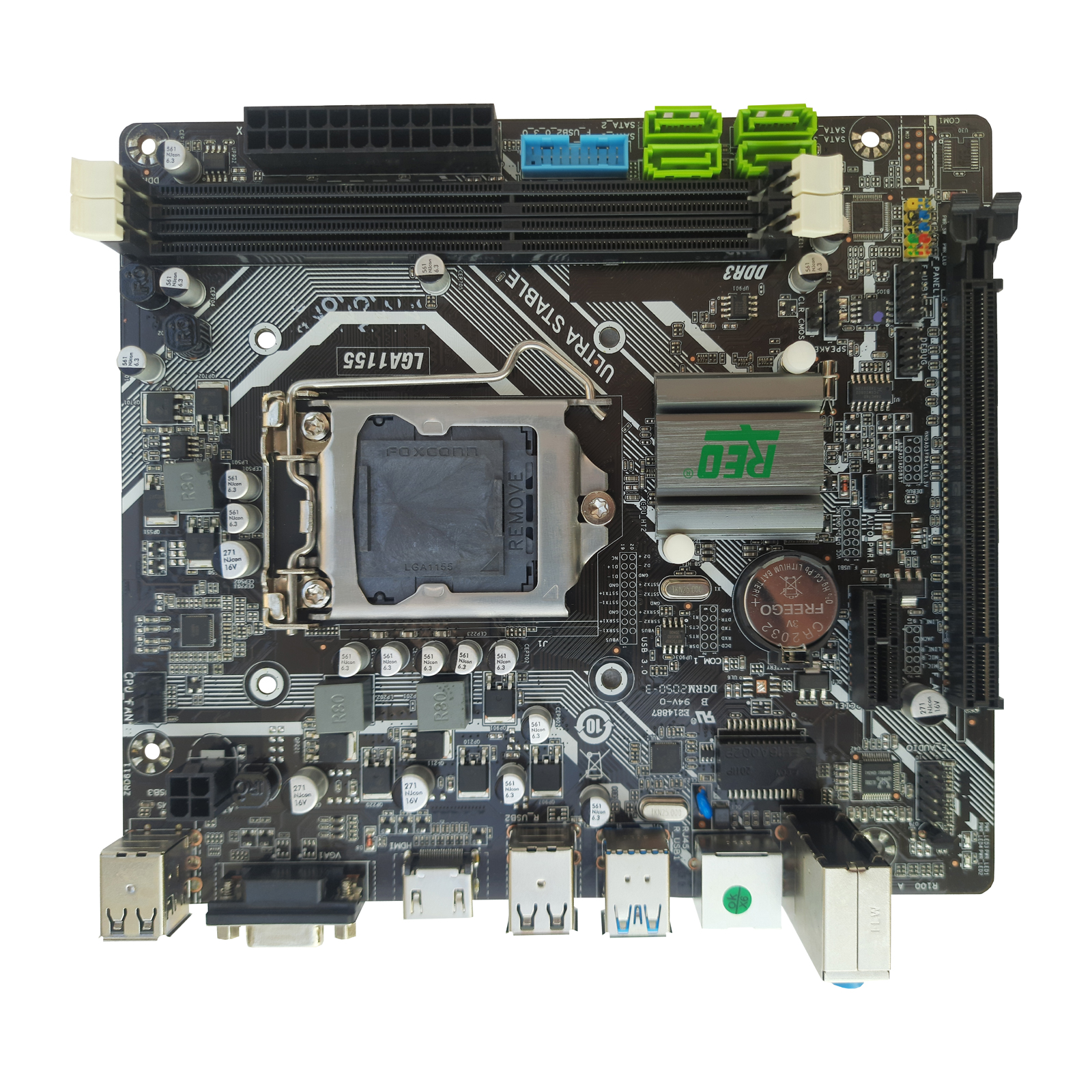

Reo H61 socket 1155 motherboard (supports all Intel 2nd and 3rd Gen CPUs)

REO REO
Rs.4400



Upgrade or build your own Socket 1155 system!

Based on the Intel H61 Express chipset, this REO H61 mATX motherboard supports Intel Core i7, Core i5 and Core i3 Socket 1155 processors. Two 240-pin DIMM sockets support up to 16 GB of DDR3 1600/1333/1066 MHz memory. Experience rich sound quality with integrated ALC662 5.1 channel audio.

Connect to a network with the integrated RTL810 Ethernet Controller. There is plenty of room for expansion with one PCI Express x16 slot and one PCI Express x1 slot. The REO H61 motherboard has plenty of I/O ports such as six USB 2.0 ports so you can add a number peripherals!



Features/Specifications:


  • Reo H61 socket 1155 motherboard (supports all Intel 2nd and 3rd Gen CPUs)
  • General Features:
  • REO H61 Express chipset
  • Socket 1155 architecture
  • microATX form factor
  • Supports up to 16 GB of DDR3 1600/1333/1066 SDRAM (non-ECC memory)
  • Integrated video
  • Integrated 5.1 channel audio subsystem with three analog audio outputs using the Realtek audio
  • Integrated Ethernet (10/100 Mbits/sec) LAN subsystem using the Ethernet Controller.
  • Four (4) Serial ATA ports
  • 24-pin ATX power connector

  • Expansion Slots:
  • One (1) PCI Express 2.0 x16 slot
  • One (1) PCI Express 2.0 x1 slot
  • Two (2) 240-pin DDR3 DIMM sockets

  • I/O Ports:
  • One (1) 15-pin VGA port
  • One (1) HDMI
  • Eight (8) USB ports (Six rear USB 2.0 and two internal USB 3.0 headers)
  • One (1) RJ-45 Ethernet jack
  • Mic in, Line in, Line out 3.5 mm jacks

  • Supported Processors:
  • Only Intel Core i7, Core i5, and Core i3 processors, as well as Pentium and Celeron 2nd and 3rd generation processors, are supported.
  • Supports Intel 64 architecture

  • Box Dimensions : 21 W x 5.9 H x 25.5 D (CM)
  • Box Weight : 520 grams
  • Product Dimensions : 17 W x 3.6 H x 19 D (CM)
  • Product Weight : 340 Grams



Package Includes:


  • Reo H61 socket 1155 motherboard (supports all Intel 2nd and 3rd Gen CPUs)
  • IO Plate
  • Driver CD
  • Sata Data Cable
  • Manual

Additional Information:


  • Notes:
  • Model: H61FLLN-B0
  • The colour of the PCB and some ports may vary; please confirm with the buyer before purchasing. The image is only for representational purposes.
  • Product Requirements:
  • Supported CPU
  • Supported RAM
  • The rest of the system
