Upgrade or build your own Socket 1150 system!

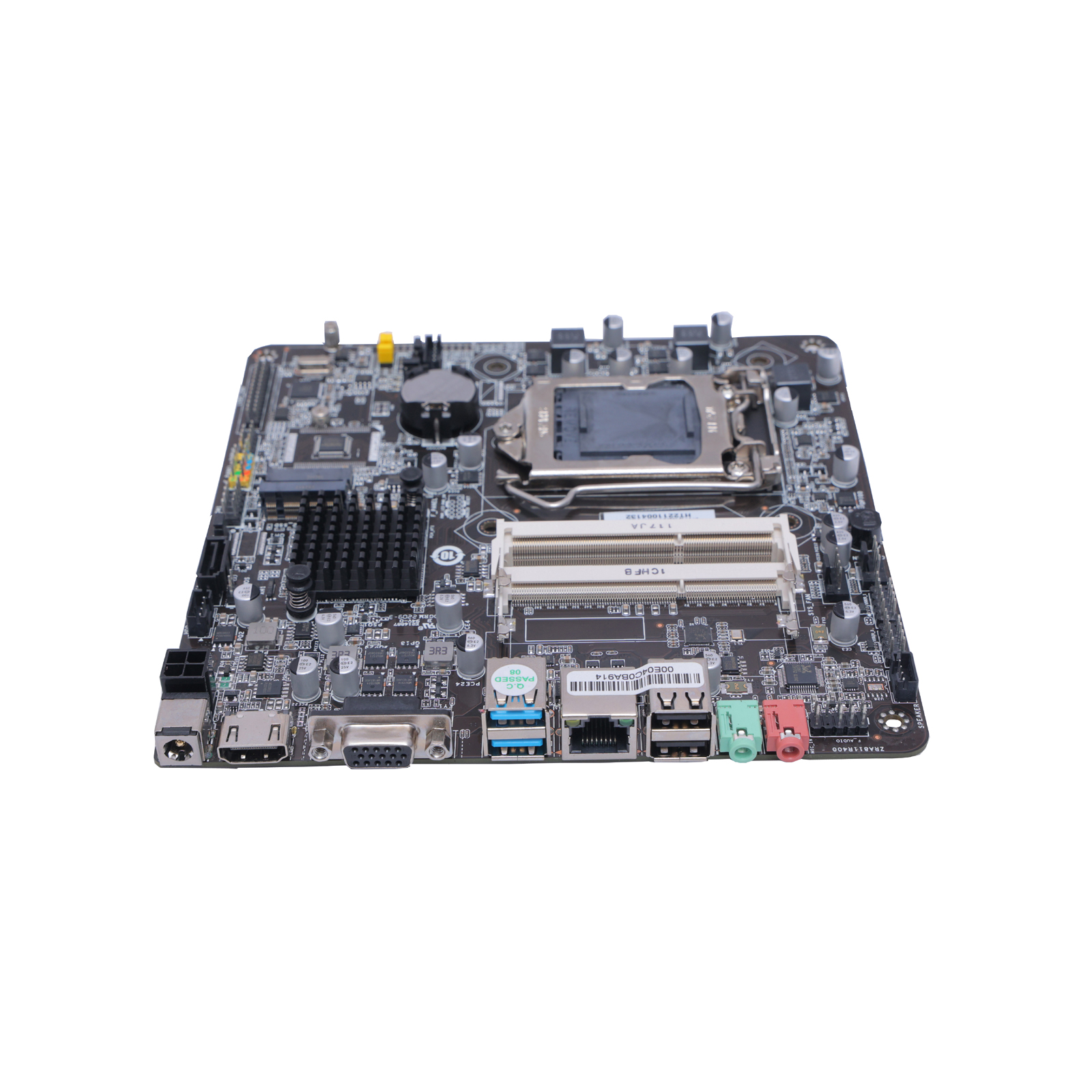

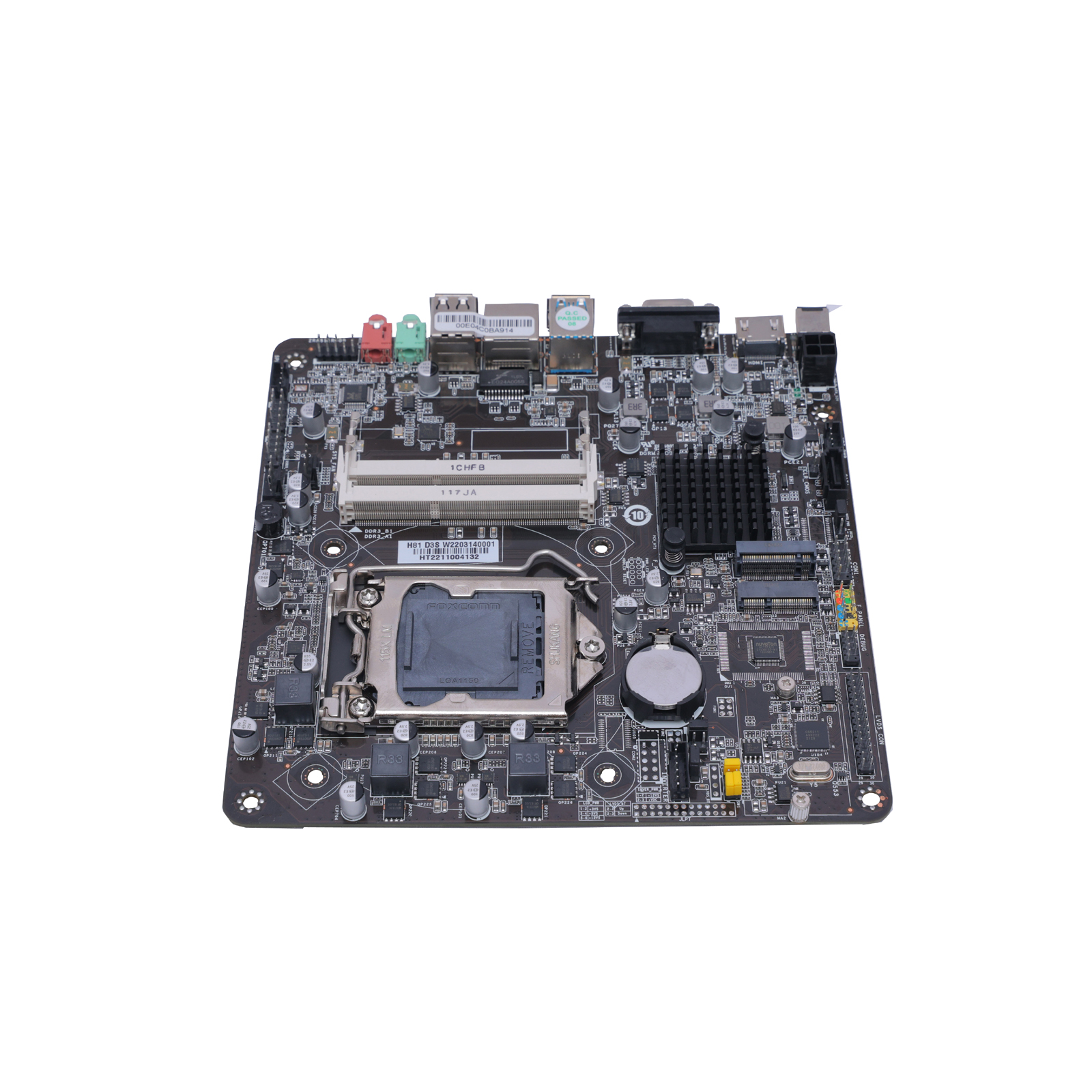

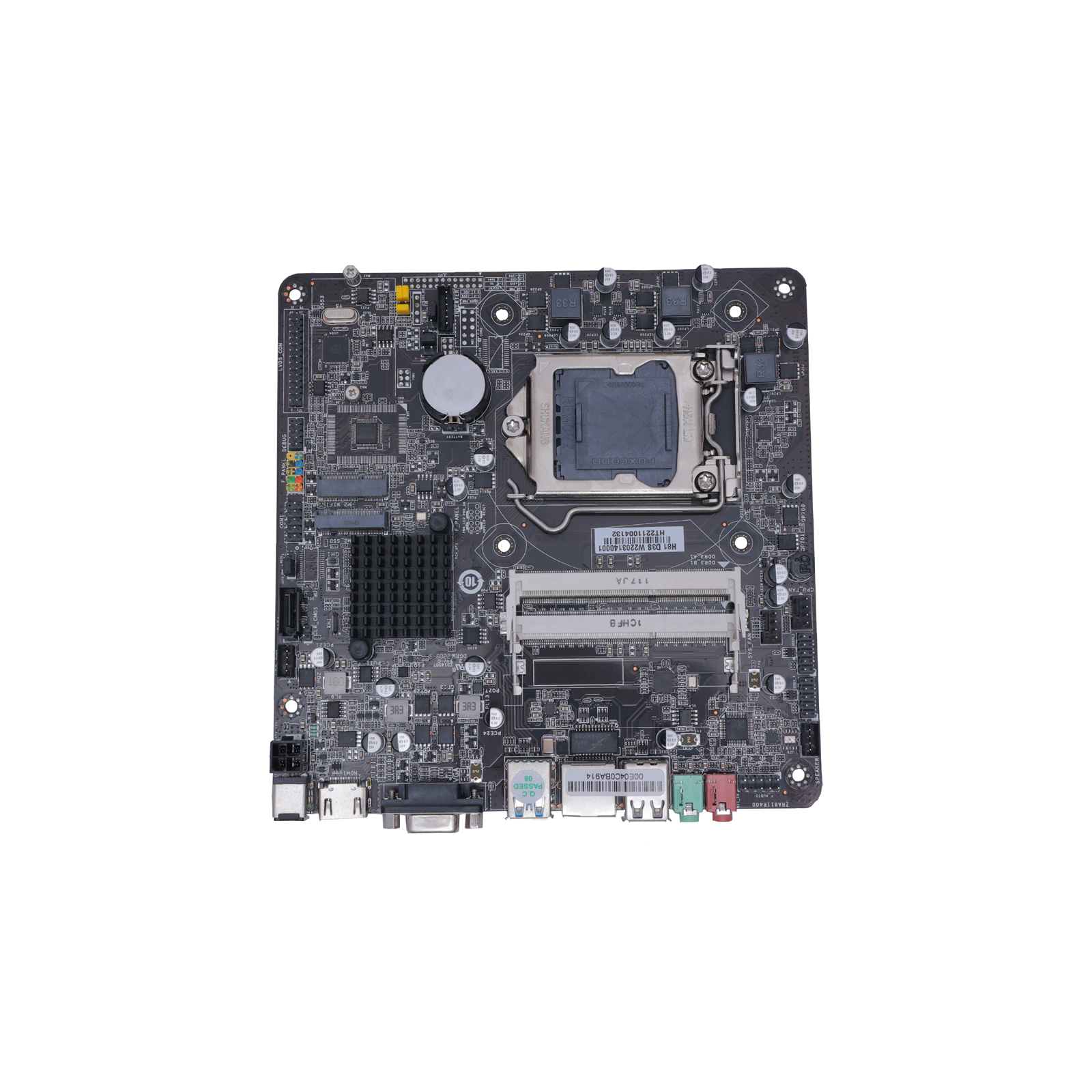

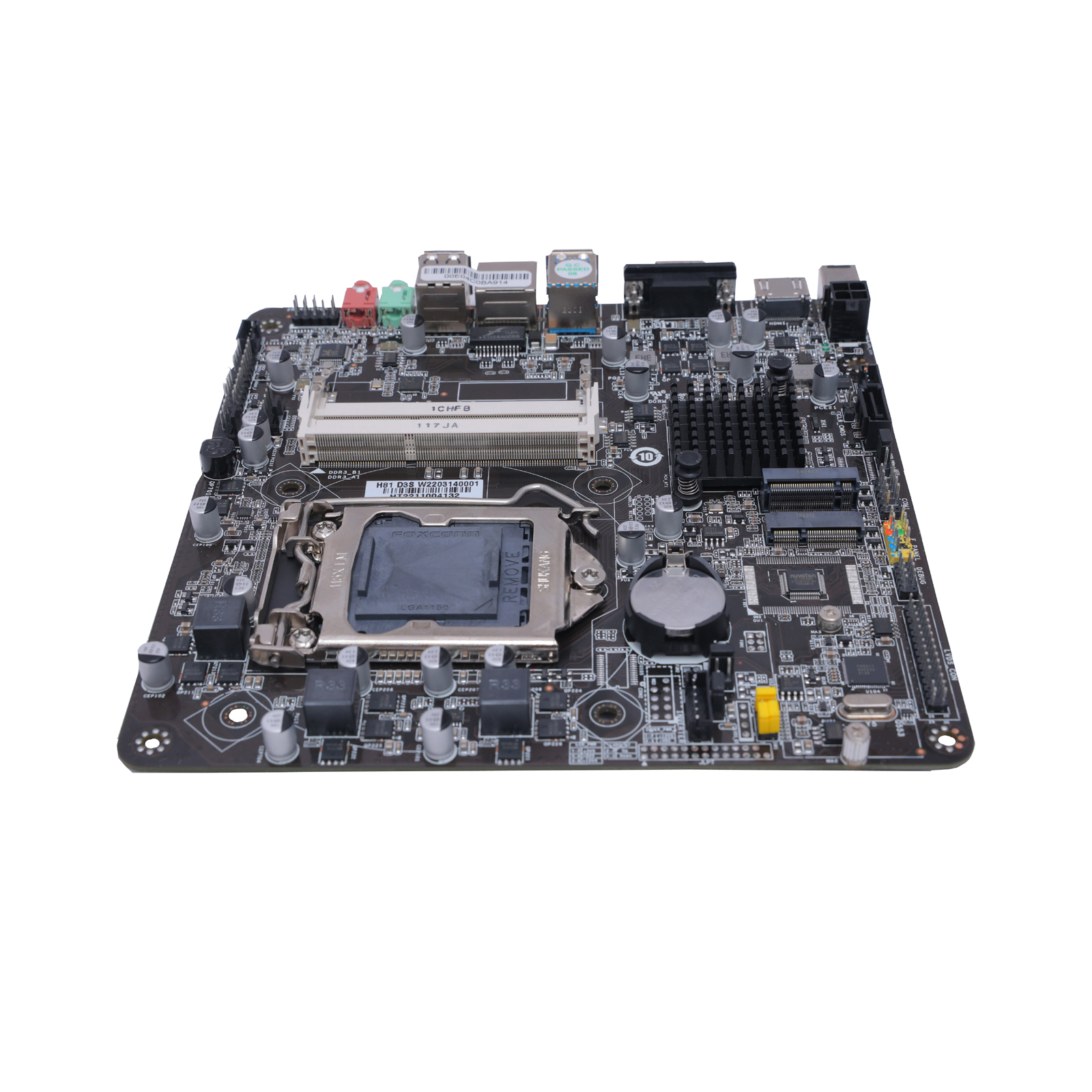

Based on the Intel H81 Express chipset, this REO H81 Mini-ITX motherboard supports Intel Core i7, Core i5 and Core i3 Socket 1150 processors. Two 204-pin DIMM sockets support up to 16 GB of DDR3 1600/1333/1066 MHz memory. Experience rich sound quality with integrated audio.
Connect to a network with the integrated Ethernet Controller. The REO H81MI motherboard has plenty of I/O ports such as four USB ports so you can add a number peripherals!
|
|
|
Features/Specifications: |
|
|
|
- Reo H81MI socket 1150 Mini-ITX motherboard(supports all intel 4th gen cpus)
- General Features:
- REO H81 Express chipset
- Socket 1150 architecture
- Mini-ITX form factor
- Supports up to laptop 16 GB of DDR3 1600/1333/1066 SDRAM (non-ECC memory)
- Integrated video
- Integrated 5.1 channel audio subsystem with three analog audio outputs using the Realtek audio
- Integrated Ethernet LAN subsystem using the Ethernet Controller.
- Two (2) Serial ATA ports
- 12V DC Pin
- Expansion Slots:
- One (1) M2 Wifi
- One (1) M2 SSD
- Two (2) 204-pin DDR3 DIMM sockets

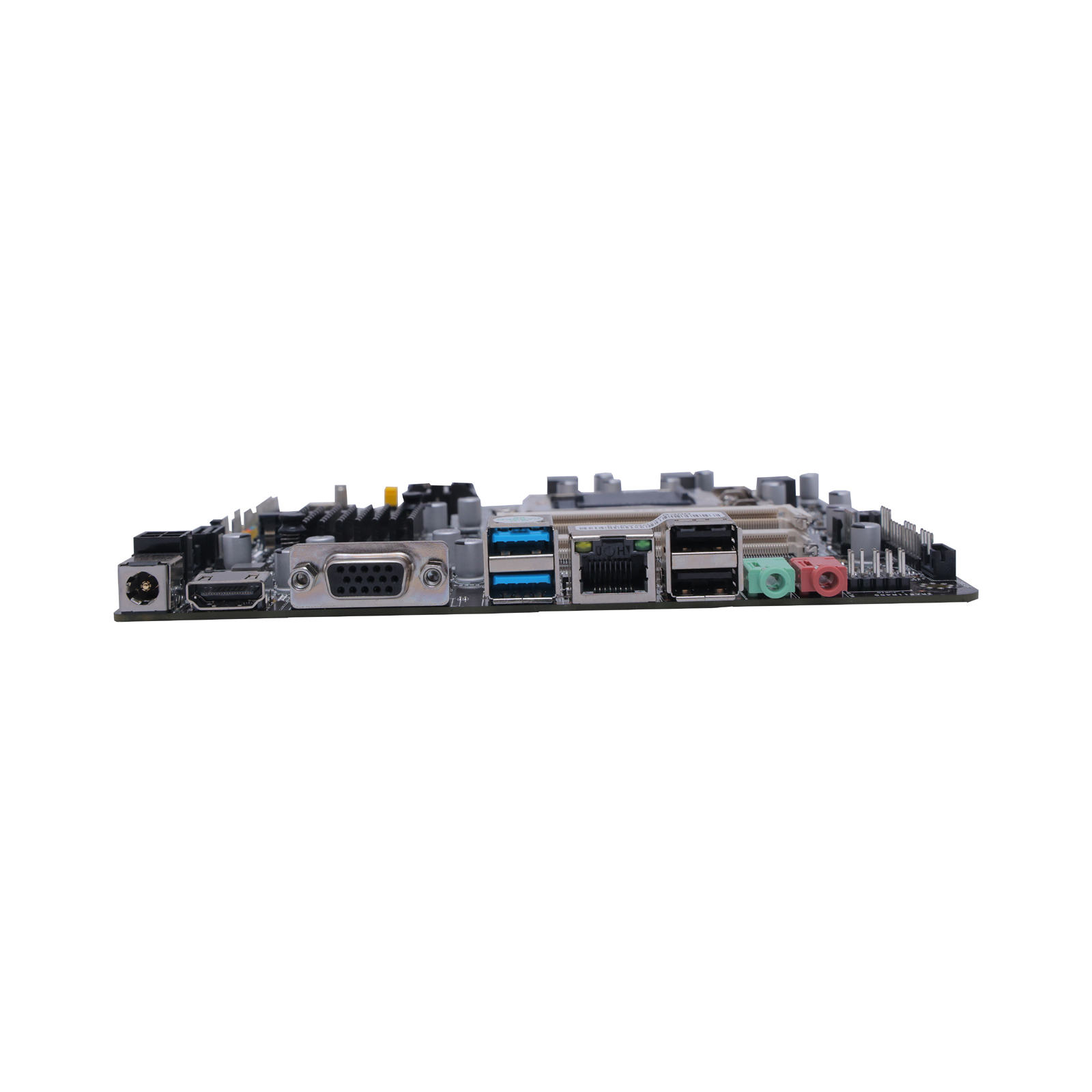

- I/O Ports:
- One (1) 15-pin VGA port
- One (1) HDMI
- Four (4) USB ports
- One (1) RJ-45 Ethernet jack
- Mic in, Line out 3.5 mm jacks
- Supported Processors:
- Only Intel Core i7, Core i5, and Core i3 processors, as well as Pentium and Celeron 4th Generation processors, are supported.
- Supports Intel 64 architecture
- Box Dimensions : 25 W x 5 H x 18 D (CM)
- Box Weight : 360 grams
- Product Dimensions : 17 W x 17 H x 1.5 D (CM)
- Product Weight : 320 Grams
|
|
Package Includes: |
|
|
|
- Reo H81MI socket 1150 Mini-ITX motherboard(supports all intel 4th gen cpus)
- IO Plate
- Driver CD
- Sata Data Cable
- Manual
|
|
Additional Information: |
|
|
|
- Product Requirements:
- Supported CPU
- Supported RAM
- The rest of the system
|
|
