Upgrade or build your own Socket 1156 system!

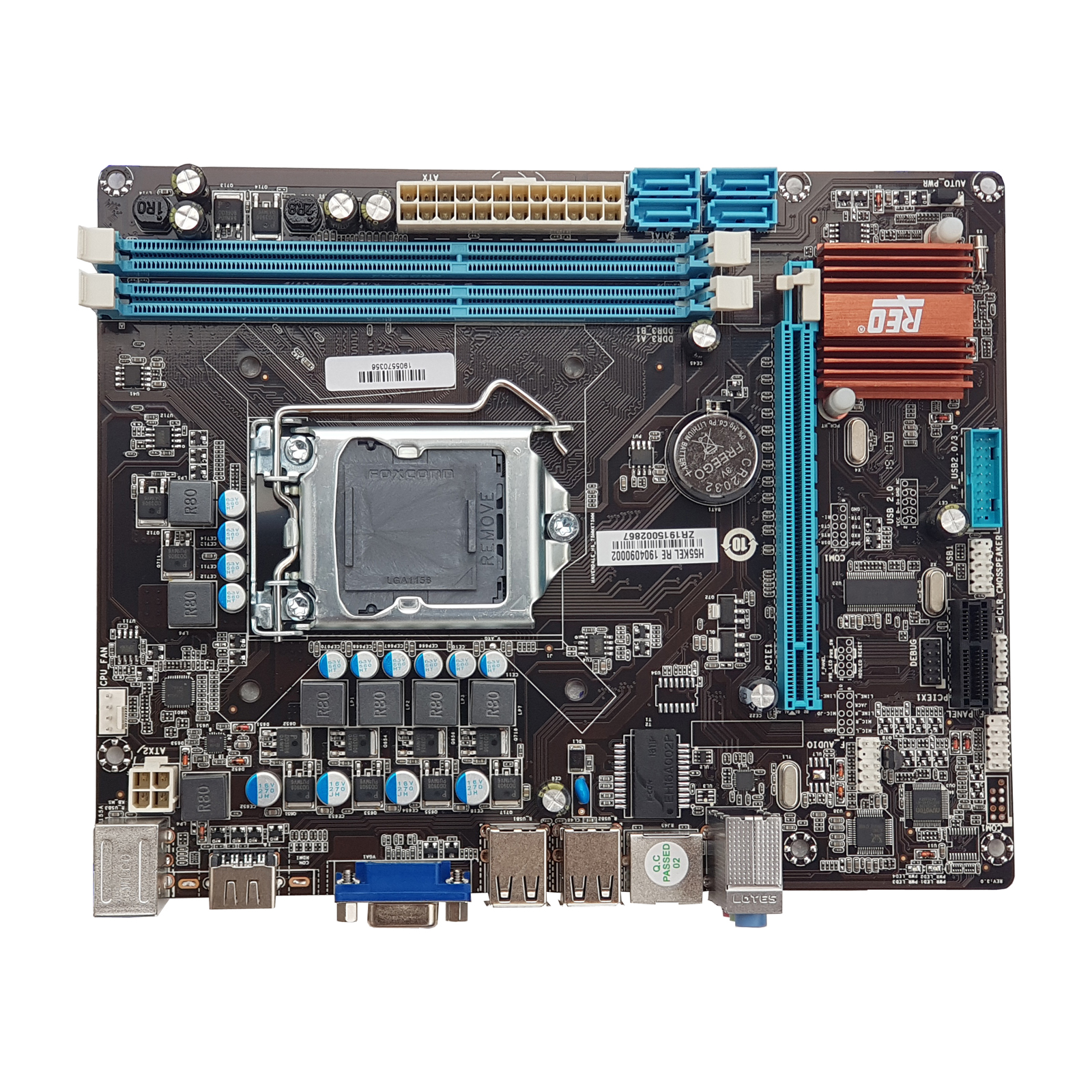

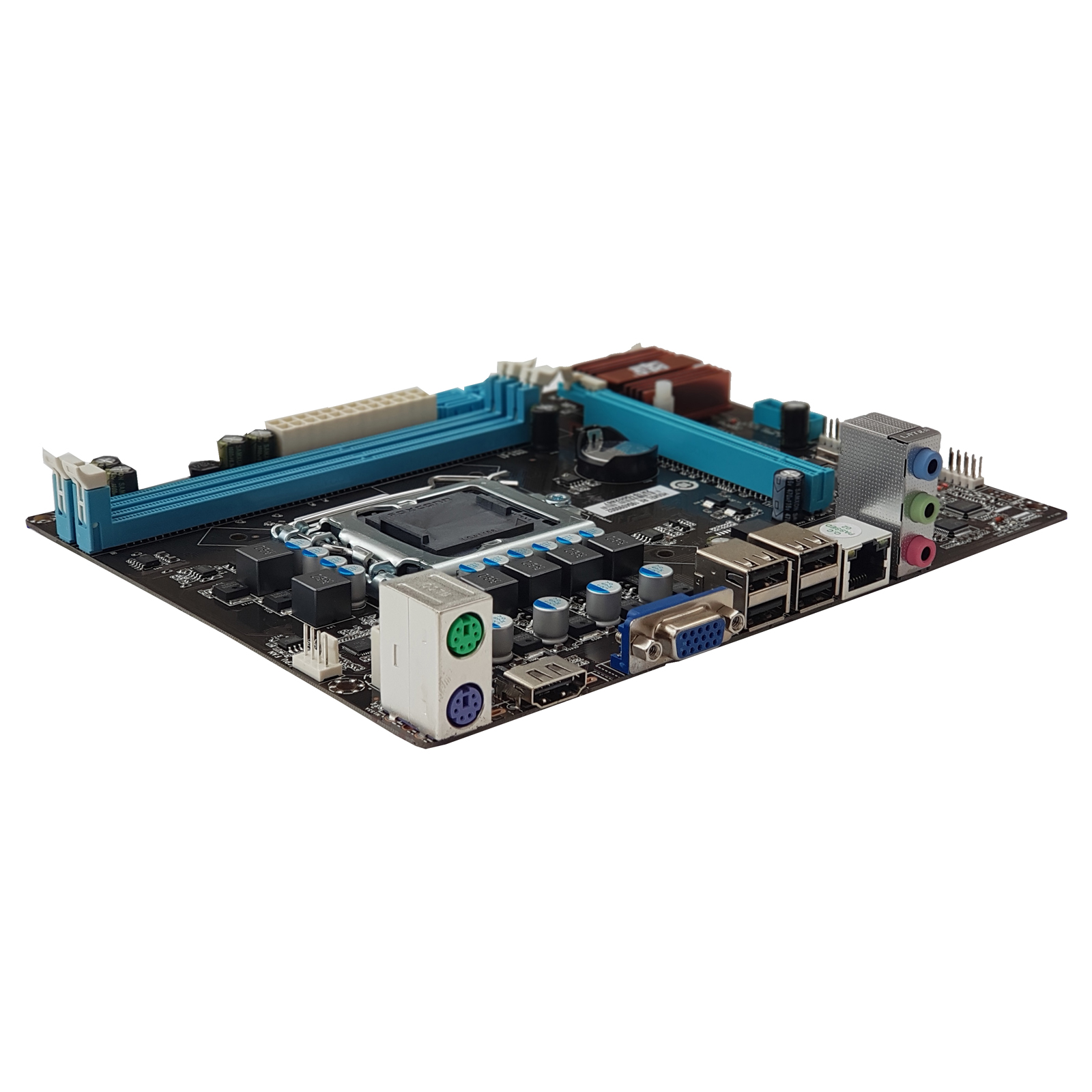

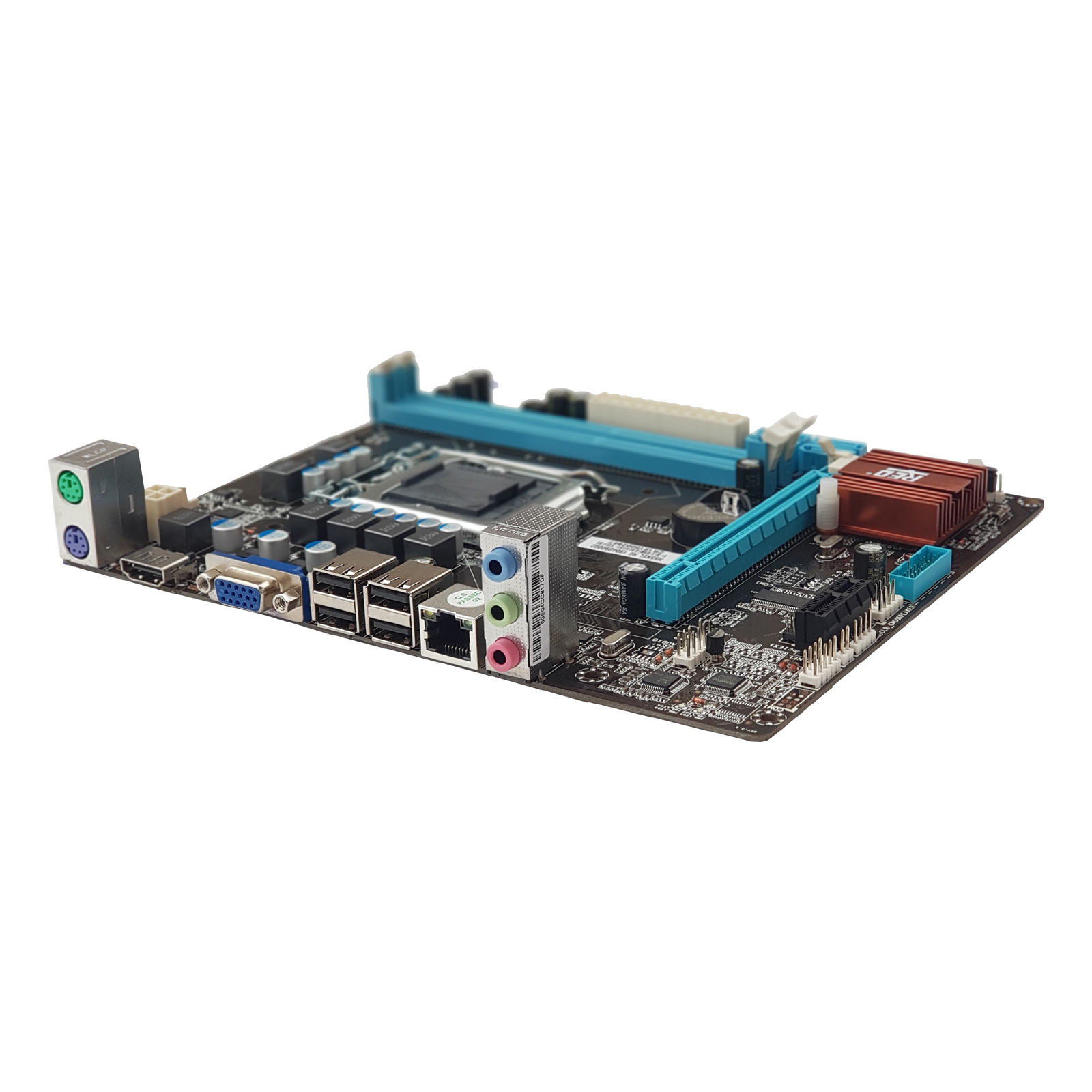

Based on the Intel H55 Express chipset, this REO H55 mATX motherboard supports Intel Core i5 and Core i3 Socket 1156 processors. Two 240-pin DIMM sockets support up to 16 GB of DDR3 1600/1333/1066 MHz memory. Experience rich sound quality with integrated 5.1 channel audio.
Connect to a network with the integrated Ethernet Controller. There is plenty of room for expansion with one PCI Express x16 slot and one PCI Express x1 slot. The REO H55 motherboard has plenty of I/O ports such as six USB 2.0 ports so you can add a number peripherals!
|
|
|
Features/Specifications: |
|
|
|
- REO H55 Socket 1156 mATX Motherboard(Supports Intel i3 and i5 1st Gen CPUs)
- General Features:
- REO H55 Express chipset
- Socket 1156 architecture
- microATX form factor
- Supports up to 16 GB of DDR3 1600/1333/1066 SDRAM (non-ECC memory)
- Integrated video
- Integrated 5.1 channel audio subsystem with three analog audio outputs using the Realtek audio
- Integrated Ethernet (10/100 Mbits/sec) LAN subsystem using the Ethernet Controller.
- Four (4) Serial ATA ports
- 24-pin ATX power connector
- Expansion Slots:
- One (1) PCI Express 2.0 x16 slot
- One (1) PCI Express 2.0 x1 slot
- Two (2) 240-pin DDR3 DIMM sockets

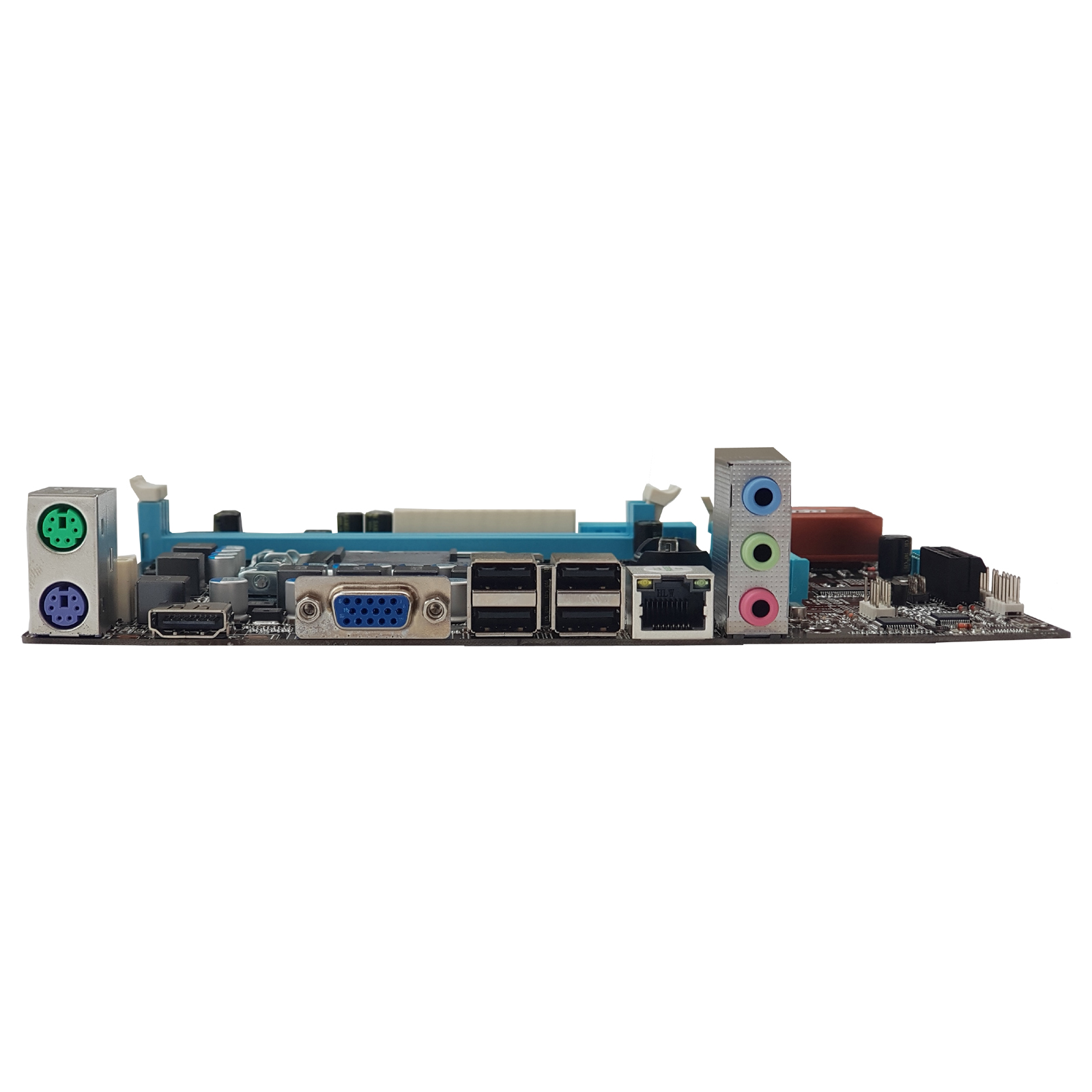

- I/O Ports:
- One (1) 15-pin VGA port
- One (1) HDMI
- Six (6) USB ports (Four rear USB 2.0 and two internal USB 3.0 headers)
- One (1) RJ-45 Ethernet jack
- Mic in, Line in, Line out 3.5 mm jacks

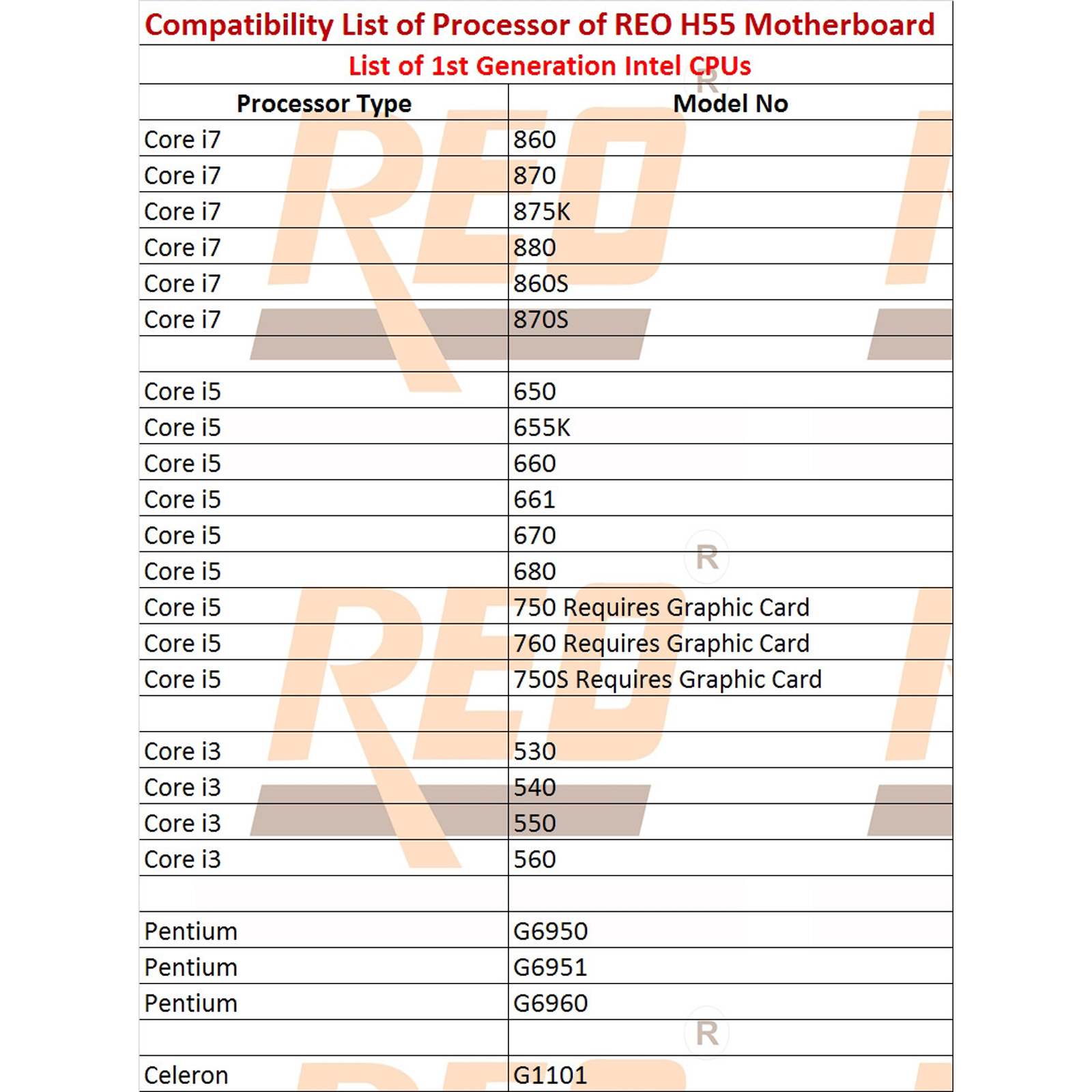

- Supported Processors:
- Intel Core i5 and Core i3 processors
- Supports Intel 64 architecture
- Box Dimensions : 2.2 W x 10.2 H x 8.25 D (inch)
- Box Weight : 570 grams
- Product Dimensions : 1.4 W x 8.5 H x 6.6 D (inch)
- Product Weight : 370 Grams
|
|
Package Includes: |
|
|
|
- REO H55 Socket 1156 mATX Motherboard(Supports Intel i3 and i5 1st Gen CPUs)
- IO Plate
- Driver CD
- Sata Data Cable
- Manual
|
|
Additional Information: |
|
|
|
- Product Requirements:
- Supported CPU
- Supported RAM
- The rest of the system
|
|
