APU Accelerated Processing Unit(APU) is the unique combination of CPU and GPU computing technology. It is designed to vastly improve today’s internet, video processing, playback and gaming experiences.
Direct X ® 11 DirectX® 11 is the latest in highspeed, highfidelity gaming and computing. It can enable not just more visually stunning games, but significant performance improvements in some of your favorite websites and everyday applications.
Unified Video Decoder Enjoy incredible video playback quality in Blu-ray movies and other HD content including support for DivX, Xvid, MVC and MPEG4-part 2 formats with advanced video enhancements.
AMD HD3D Technology3 AMD HD3D Technology is supported by an advanced and open ecosystem that, in conjunction with specific AMD hardware and software technologies, enables 3D display capabilities for many PC applications and experiences. Your PC has evolved, offering unprecedented amount of games, photos and movies for you to play, watch, design, create, share and download in 3D. With the arrival of the latest in 3D technology you can now enjoy an enhanced visual experience on Stereo 3D-capable desktops and notebooks powered by AMD HD3D Technology.
AMD EyeSpeed Technology2 Improve application performance with new GPU-accelerated features in Internet Explorer® 9, Mozilla Firefox® and Microsoft® Office 2010 for an outstanding visual computing experience.
HDMI™-The Next Generation Multimedia Interface HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
OC-CON high-polymer solid electrolysis aluminum capacitors embedded The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC_CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.
Thunder Protection Technology Jetway Thunder series motherboards are integrated with double thunder-protection walls, one from network port and the other from LAN chip. The first thunder-protection wall will analyze and identify thunderbolt surges in network cable when it thunders and transfer thunder surge to ground wire area. The second thunder-protection wall will protect against any residual electric current or runaway electrons to ensure safety of network card and other components from the motherboard. Laboratory test statistics on IEC61000-4-5 (1.2-50us) specialized thunderbolt surge tests have verified that Jetway Thunder series motherboard can endure up to 9KV thunderbolt surge and protect the system from possible thunder damage.
Features/Specifications:

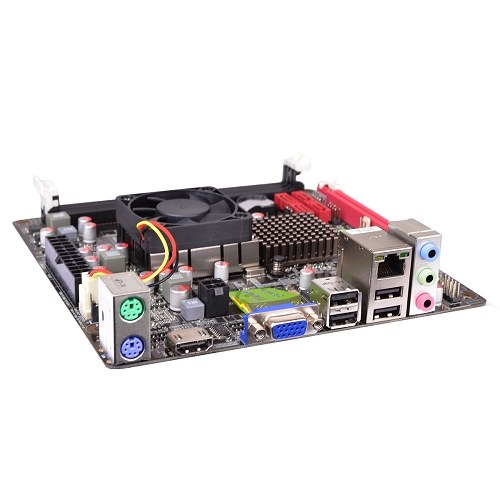

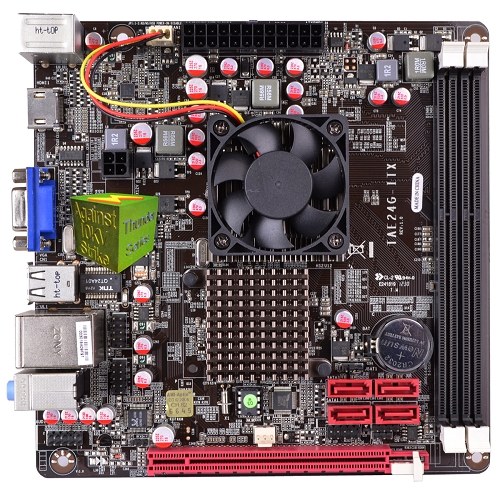

Jetway TAE24G-ITX Mini-ITX Motherboard w/Embedded Fusion E240 1.5GHz CPU
General Features:
Embedded AMD E240 1.5GHz CPU
Mini-ITX form factor
AMD Hudson D1+ FT1 E240 Chipset
Supports up to 16GB DDR3 1066 non-ECC, un-buffered memory
Dual Channel DDR3 memory technology
AMD Radeon Dual graphics
Support DirectX 11 3D Graphics Acceleration, Pixel Shader 5.0
Support Steady Video: New video post processing capability for automatic jutter reduction on home/online video
Support Blu-ray Stereoscopic 3D with HDMI 1.4a
Support UVD3.0
6-Channel HD Audio CODEC
10/100/1000 Gigabit Ethernet LAN
Four (4) Serial ATA2 3Gb/s connectors
Heat sink and fan installed
Lead-free components (RoHS compliant)
Special Features:
Thunder Protection Function
All solid capacitor design
Expansion Slots:
One (1) PCI Express 2.0 x16 slot
Two (2) 240-pin DDR3 DIMM slots
Rear I/O Ports:
Two (2) PS/2 ports
One (1) HDMI port
One (1) 15-pin VGA port
Four (4) USB 2.0 ports
One (1) RJ-45 Ethernet jack
3.5 mm line-in, line-out and microphone audio jacks
Internal Connectors:
Two (2) USB 2.0 headers for 4 USB 2.0 ports
CPU / Chassis Fan connectors
One (1) 4-pin ATX 12V Power connector
One (1) 24-pin ATX Power connector
One (1) Audio header
One (1) HDMI_SPDIF header
Package Includes:
Jetway TAE24G-ITX Mini-ITX Motherboard w/Embedded Fusion E240 1.5GHz CPU
