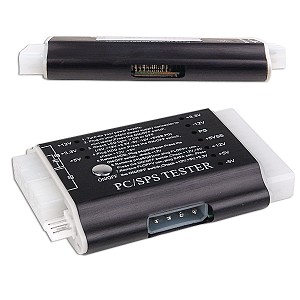

This REO LED Power Supply Tester gives you the tools to make sure that your power supply is fully operational and ready to work! It will tests 24-pin or 20-pin, floppy, HDD/CD-ROM, SATA, 4-pin (P4), 8-pin (Dual CPU) and 6-pin (PCI Express) connectors and is compliant with ATX, BTX and ITX power supplies!
Use this Power Supply Tester to test your power supply if you don't have a motherboard to plug in to. But if you think that the power supply is bad and don't want to risk frying your motherboard, then this is the perfect device!
Just plug it into the power supply's 24-pin ATX connector, and it will turn the power supply on. The LED lights will indicate the status of the voltage!
|
Features/Specifications: |
|
|
|
- REO LED 20+4-pin Power Supply Tester w/8/6/4-pin Connectors
- General Features:
- Voltage tester for your PCs power supply
- Tests 24-pin or 20-pin connector, Floppy, HDD/CD-ROM, SATA, 4-pin (P4), 8-pin (Dual CPU) and 6-pin (PCI Express) connectors
- On/Off switch
- ATX, BTX and ITX compliant
- Aluminum casing
- Plug in 24-pin power supply, press on/off button and check LED light (+3.3V, -12V, PG (Power Good), +5VSB, +12V, +5V, -5V)
- Plug in SATA connector, press on/off button and check LED light (+12V/+5V/+3.3V)
- Plug in HDD connector, press on/off button and check LED light (+12/+5V)
- Plug in (Floppy) connector, press on/off button and check LED light (+12V/+5V)
- Voltage Source:
- 20/24-pin ATX connector
- Voltage Tests:
- +12V
- -12V
- +5V
- -5V
- +3.3V
- 5V Standby (SB)
- 12V power good (P.G.)
- Unit Dimensions:
- 3.75 x 2.5 x 0.1-inches (L x W x H, approximate)
- Regulatory Approvals:
- FCC
- CE
|
|

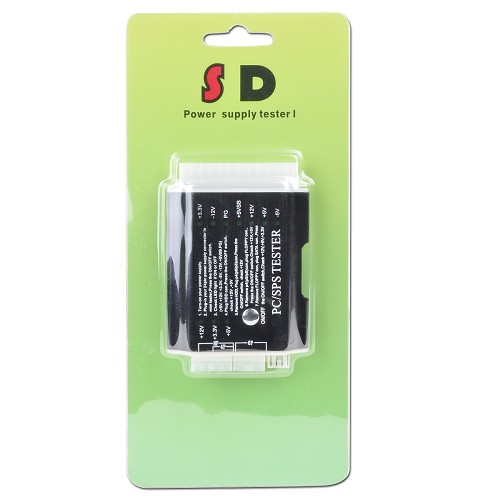

Package Includes: |
|
|
|
- REO LED 20+4-pin Power Supply Tester w/8/6/4-pin Connectors
|
|
Additional Information: |
|
|
|
- Notes:
- Do not leave tester plugged unattended
- Product Requirements:
- ATX power supply
|
|
