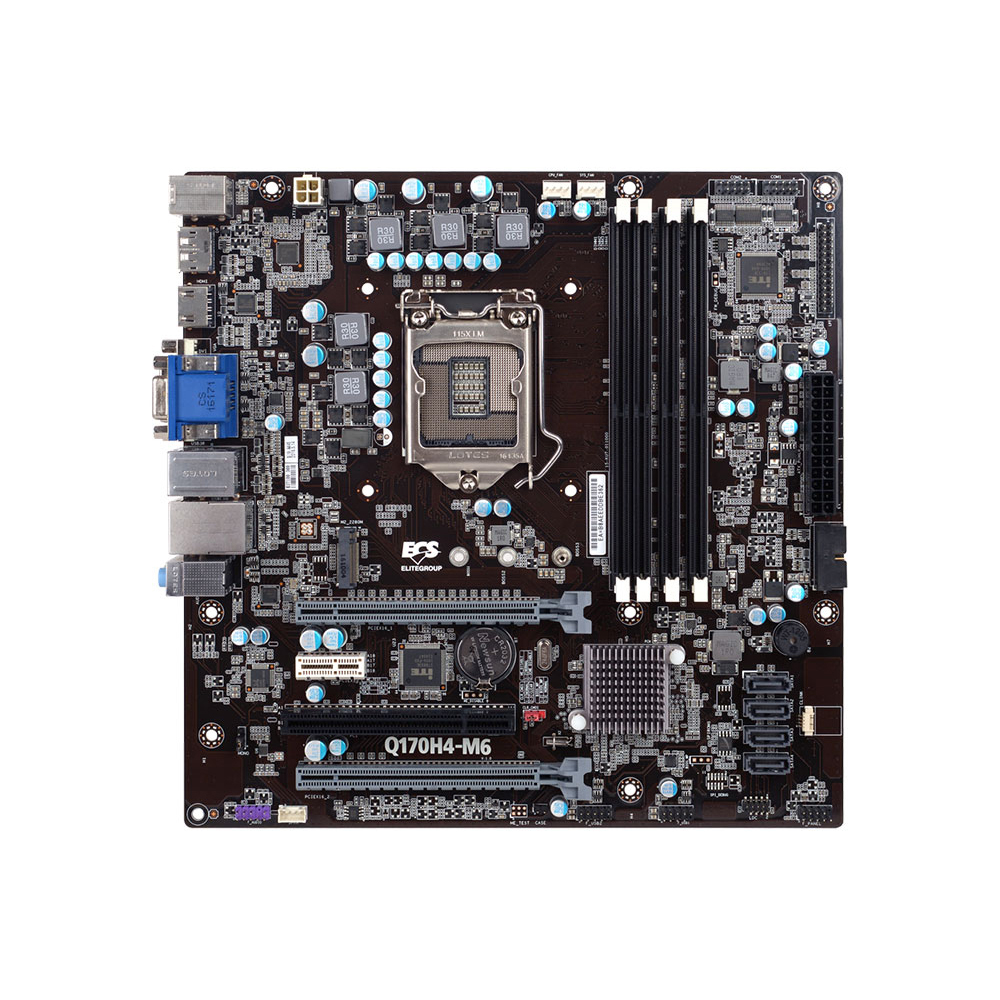

ECS Q170H4-M6 Socket 1151 mATX MB(2xSerial & 1xParallel via Header, Supp Intel 6th & 7th Gen CPUs)

REO REO REO
REO
Rs.



Upgrade your computer with a brand new ECS Q170H4-M6 Socket 1151 mATX Motherboard!

Based on the ECS Q170H4-M6 chipset, the ECS Q170H4-M6 supports Intel 6th & 7th Generation Core I7, Core I5, Core I3, Pentium Dual Core and Celeron Socket 1151 processors. Four 288-pin DDR4 DIMM slots support up to 64 GB of DDR4.

Connect your PC to a network via its built-in 10/100/1000 Ethernet port. Integrated Intel® Q170 Express Chipset provides superior graphics support, or you can add two high-end video card to the PCI Express x16 slot. There is plenty of room for expansion with one PCI x1 slots, one PCI Slot & one 4x Slot.


The ECS Q170H4-M6 includes four on-board SATA connectors so you can add high speed SATA drives. Build a powerful socket 1151 system with this ECS Q170H4-M6 Motherboard. Order today!


 Features/Specifications:


  • ECS Q170H4-M6 Socket 1151 mATX MB(2xSerial & 1xParallel via Header, Supp Intel 6th & 7th Gen CPUs)
  • General Features:
  • mATX form factor(244mm x 244mm)
  • Intel® Q170 Express Chipset
  • Socket 1151 architecture
  • Supports up to 32 GB DDR4 memory
  • Supports 6th & 7th Generation Intel CPUs.
  • 6-Channel HD audio CODEC
  • LAN chip: intel i-219LM
  • 4 X SATA III 6Gb/s connector(s)
  • Graphics : Supports DirectX® 12
  • Expansion Slots:
  • One (1) PCI Express x16 slot
  • One (1) PCI  x1 slots
  • One (1) PCI x4 Slot
  • One (1) PCI Slot
  • Four (4) 240-pin DDR4 DIMM sockets

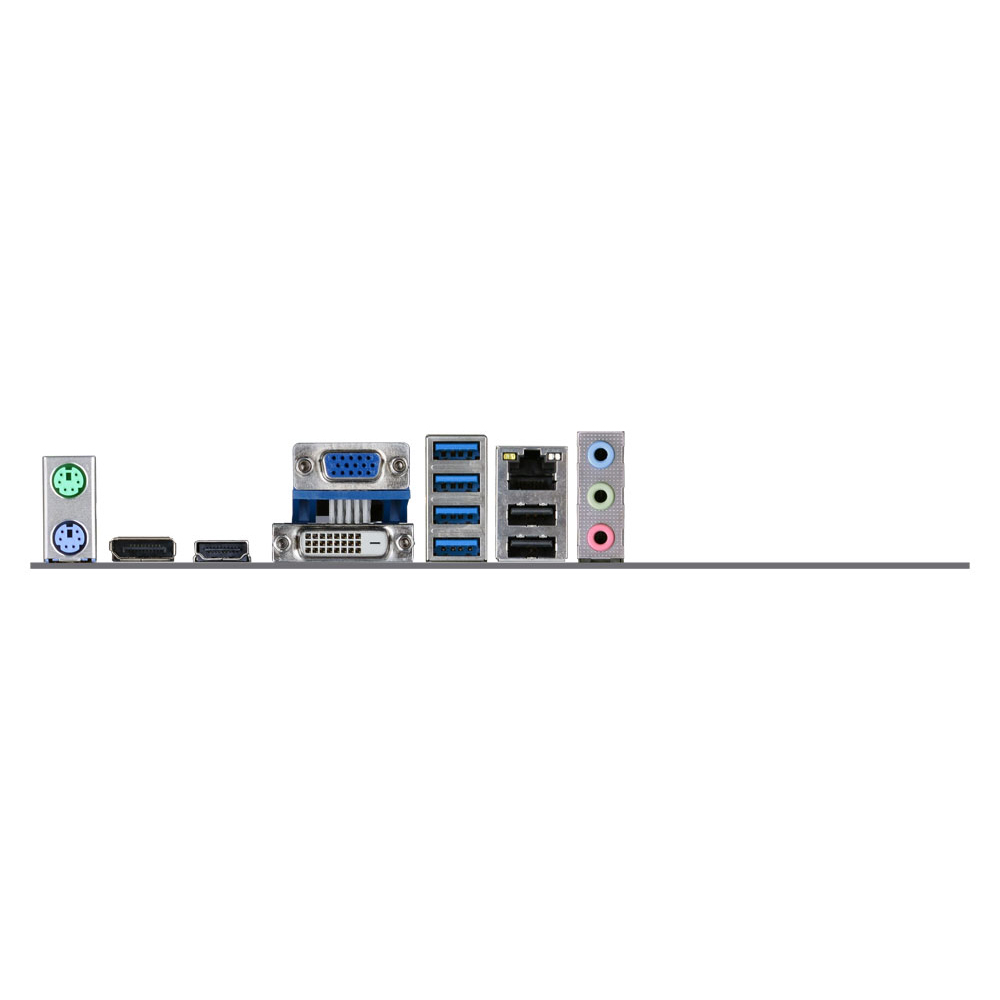

  • I/O Ports:
  • 1 X PS/2 Keyboard & PS/2 mouse connectors
  • 1 X Audio port (Line Out/Line In/Mic In)
  • 1 X RJ-45 port
  • 1 X HDMI port(s)
  • 1 X DVI-I port(s)
  • 1 X D-Sub (VGA) port(s)
  • 1 X Display port
  • 4 X USB 3.2 Gen 1x1 Type A port(s)
  • 2 X USB2.0 port(s)
  • Internal I/O Ports:
  • 24-pin ATX power connector
  • 1 X 4-pin 12V Power connector
  • 1 X 4-pin CPU_FAN connector
  • 1 X 4-pin SYS_FAN connector
  • 1 X Front Panel MIC/Speaker out header
  • 1 X Front panel audio header
  • 1 X Speaker header
  • 1 X USB 3.2 Gen 1x1 header(Support additional 2 USB ports)
  • 2 X USB 2.0 header(Support additional 4 USB ports)
  • 1 X CLR_CMOS header
  • 1 X Serial port header (COM)
  • 1 X Parallel port header (LPT)
  • 1 X Onboard TPM 2.0
  • 1 X LDC header
  • Supported Processors:
  • https://www.ecs.com.tw/en/Product/Motherboard/Q170H4-M6/support
  • SYSTEM BIOS :
  • AMI BIOS with 128 MB SPI Flash ROM
  • F7 hot key for boot up devices option
  • Triple Display
  • Multi-Language BIOS
  • CERTIFICATIONS :
  • CE/FCC Certification
  • ErP/EuP Certification
  • Box Dimensions : 27.5 W x 5 H x 25 D (CM)
  • Box Weight : 850 grams
  • Product Dimensions : 24.5 W x 3.6 H x 24.5 D (CM)
  • Product Weight : 580 Grams

Package Includes:


  • ECS Q170H4-M6 Socket 1151 mATX MB
  • Driver Disc
  • SATA cable
  • I/O shield

Additional Information:


  • Notes:
  • Model: Q170H4-M6
  • Product Requirements:
  • ATX/mATX case
  • Power supply
  • Supported processor
  • Supported RAM
  • Rest of system
  • Contents taken from below given ecs website :
  • https://www.ecs.com.tw/en/Product/Motherboard/Q170H4-M6/overview
