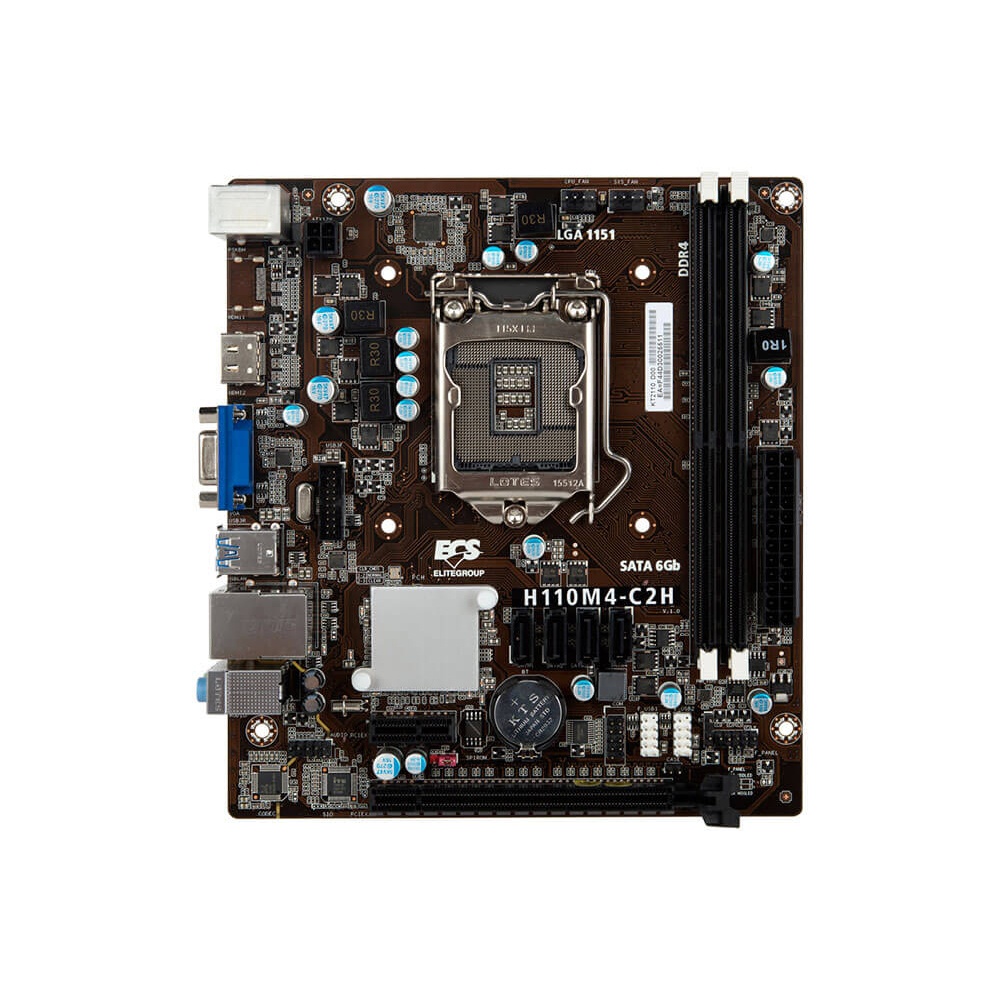

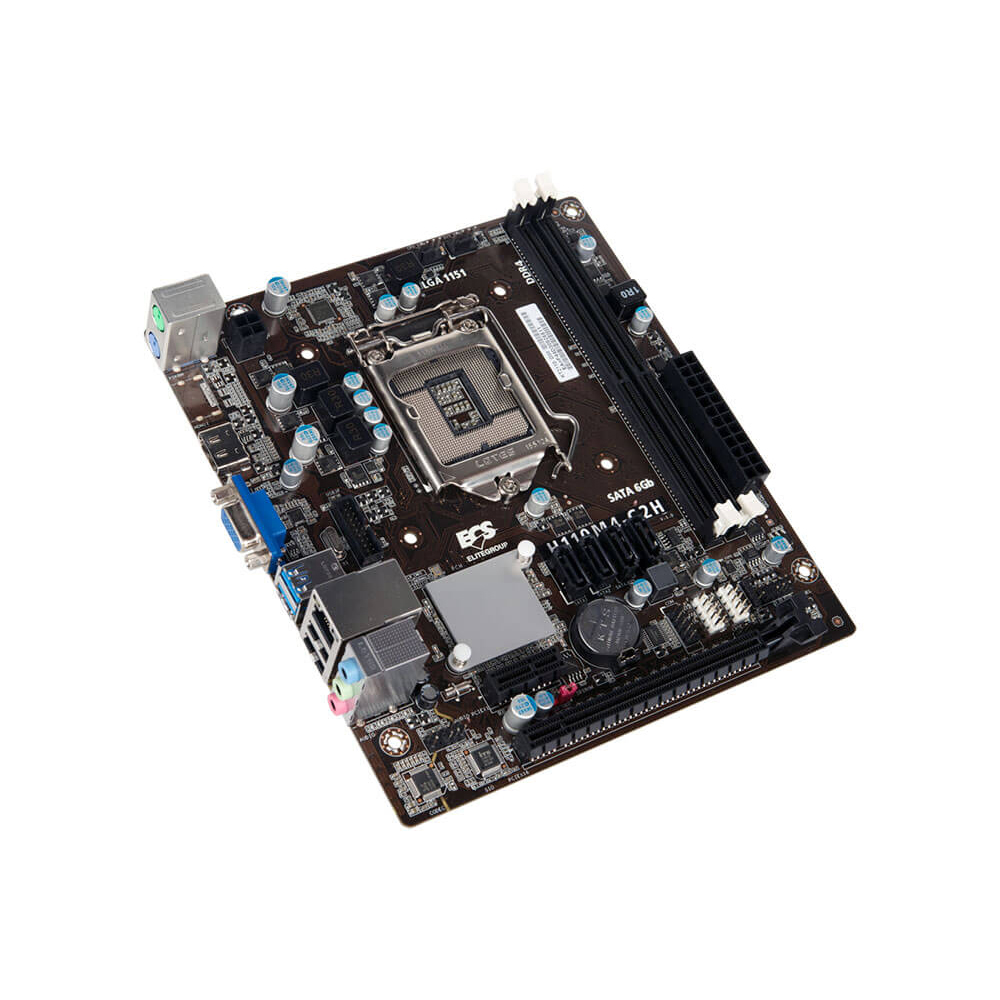

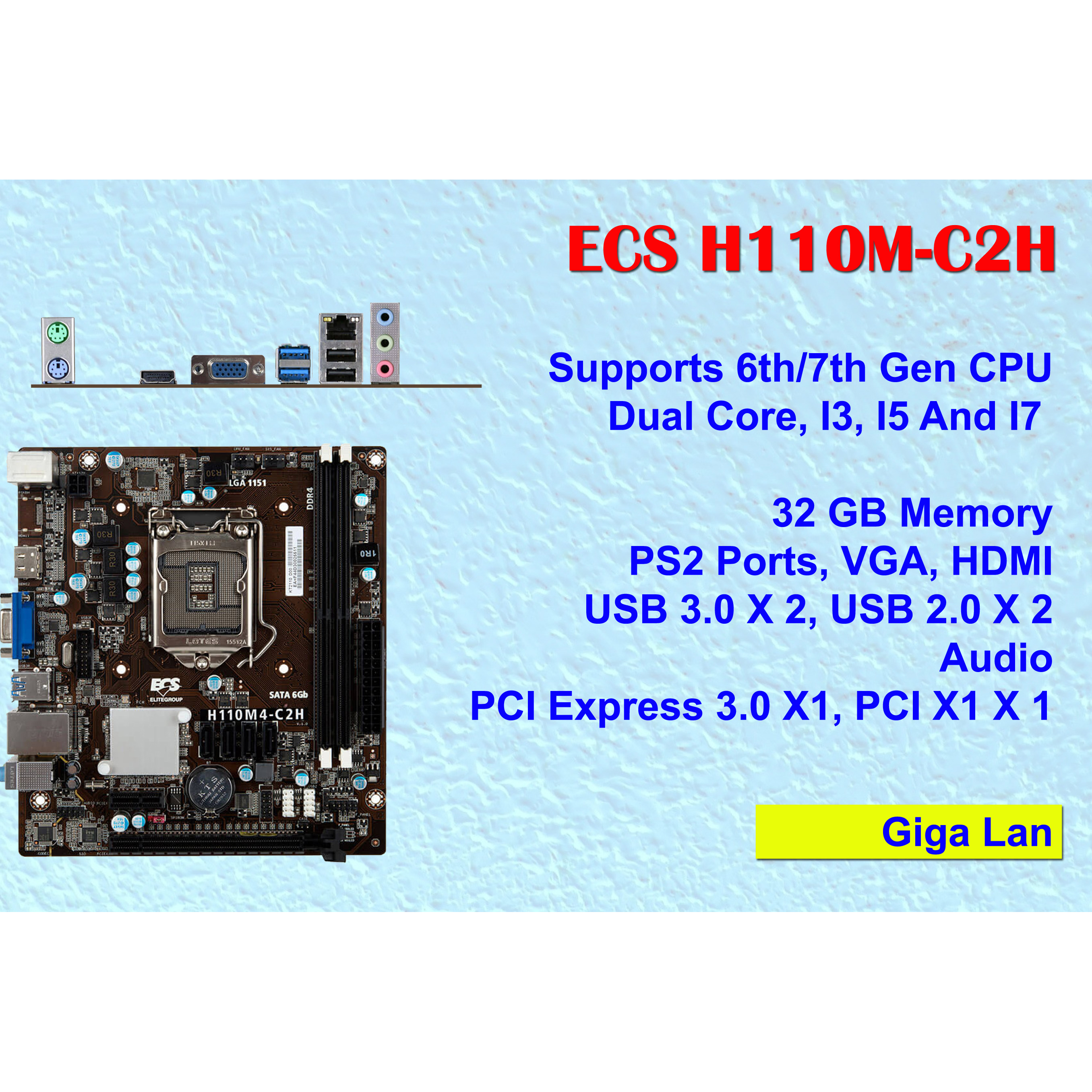

ECS H110M4-C2H Socket 1151 mATX Motherboard(Serial via Header, Supports Intel 6th & 7th Gen CPUs)

REO REO REO
REO
Rs.



Upgrade your computer with a brand new ECS H110M4-C2H Socket 1151 mATX Motherboard!

Based on the ECS H110M4-C2H chipset, the ECS H110M4-C2H supports Intel Core I7, Core I5, Core I3, Pentium Dual Core and Celeron Socket 1151 processors. Two 288-pin DDR4 DIMM slots support up to 32 GB of DDR4.

Connect your PC to a network via its built-in 10/100/1000 Ethernet port. Integrated Intel® H110 Express Chipset provides superior graphics support, or you can add a high-end video card to the PCI Express x16 slot. There is plenty of room for expansion with one PCI x1 slots.


The ECS H110M4-C2H includes four on-board SATA connectors so you can add high speed SATA drives. Build a powerful socket 1151 system with this ECS H110M4-C2H Motherboard. Order today!


 Features/Specifications:


  • ECS H110M4-C2H Socket 1151 mATX Motherboard(Supports Intel 6th & 7th Gen CPUs)
  • General Features:
  • mATX form factor(190mm x 170mm)
  • Intel® H110 Express Chipset
  • Socket 1151 architecture
  • Supports up to 32 GB DDR4 memory
  • 6-Channel HD audio CODEC, Realtek ALC662 6-channel High Definition audio CODEC
  • Realtek 8111H Gigabit Fast Ethernet Controller, Wake-On-LAN.
  • 4 X SATA III 6Gb/s connector(s)
  • Graphics : Supports DirectX® 12
  • Applied 100% Solid capacitor design to maximize component reliability (Optional)
  • ECS Durathon Technology ensure the stability, reliability and performance of system.
  • ESD Protection prevents computers from electrostatic discharge damage to enhance
    its durability and lifespan
  • Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language
    environment
  • Supports DirectX® 12 to enhance graphical performance
  • Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
  • ECS Intelligent EZ Utility : eDLU, eSF
  • Expansion Slots:
  • One (1) PCI Express x16 slot
  • One (1) PCI  x1 slots
  • Two (2) 240-pin DDR4 DIMM sockets

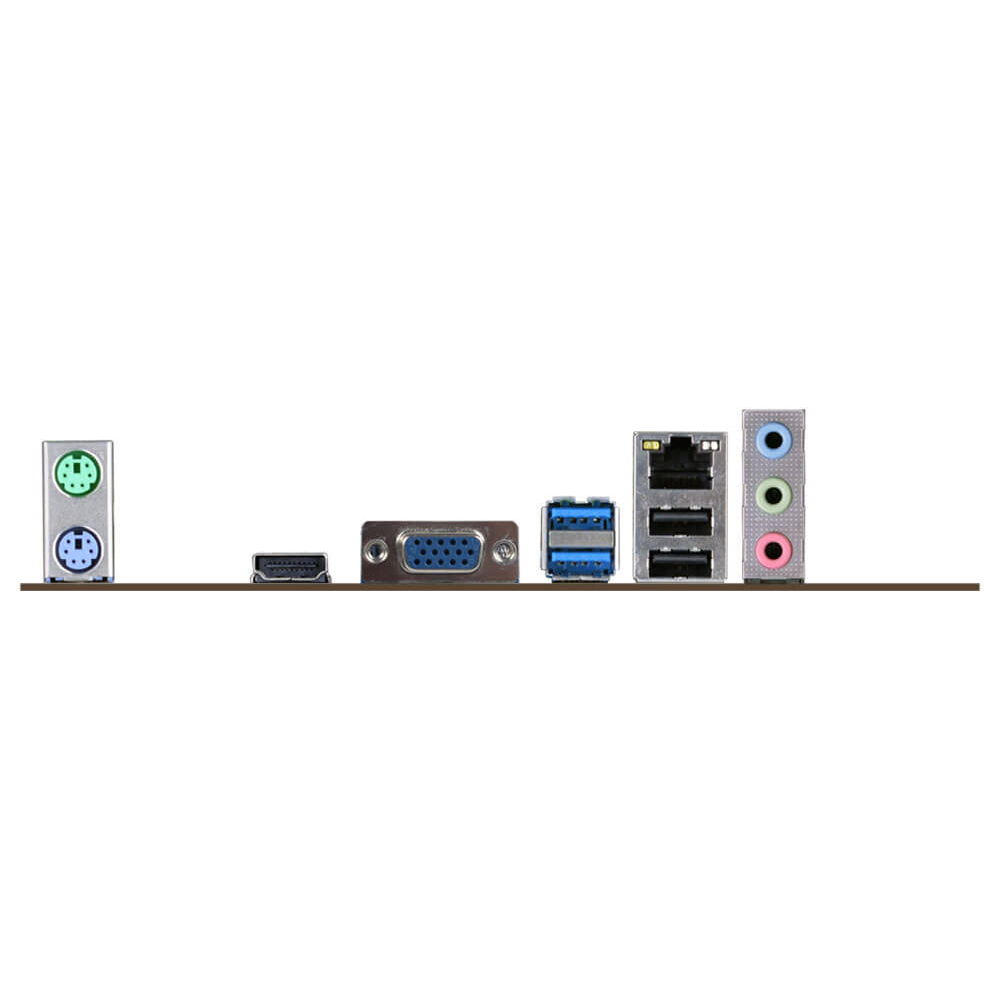

  • I/O Ports:
  • 1 X PS/2 Keyboard & PS/2 mouse connectors
  • 1 X Audio port (Line Out/Line In/Mic In)
  • 1 X RJ-45 port
  • 1 X HDMI port(s)
  • 1 X D-Sub (VGA) port(s)
  • 2 X USB 3.2 Gen 1x1 Type A port(s)
  • 2 X USB2.0 port(s)
  • Internal I/O Ports:
  • 1 X 24-pin ATX Power Supply connector
  • 1 X 4-pin 12V Power connector
  • 1 X 4-pin CPU_FAN connector
  • 1 X 4-pin SYS_FAN connector
  • 1 X Front Panel switch/LED header
  • 1 X Front panel audio header
  • 1 X USB 3.2 Gen 1x1 header(Support additional 2 USB ports)
  • 2 X USB 2.0 header(Support additional 4 USB ports)
  • 4 X SATA III 6Gb/s connector(s)
  • 1 X CLR_CMOS header
  • 1 X Serial port header (COM)

  • Supported Processors:
  • https://www.ecs.com.tw/en/Product/Motherboard/H110M4-C2H/support
  • SYSTEM BIOS :
  • AMI BIOS with 64 MB SPI Flash ROM
  • ACPI & DMI
  • Dual Display
  • Support GUI UEFI BIOS
  • Multi-Language BIOS
  • CERTIFICATIONS :
  • CE/FCC Certification
  • ErP/EuP Certification
  • WHQL Certification
  • WHCK Certification
  • Box Dimensions : 27.5 W x 5 H x 25 D (CM)
  • Box Weight : 580 grams
  • Product Dimensions : 19 W x 3.6 H x 17 D (CM)
  • Product Weight : 340 Grams

Package Includes:


  • ECS H110M4-C2H Socket 1151 mATX Motherboard
  • Driver Disc
  • SATA cable
  • I/O shield

Additional Information:


  • Notes:
  • Model: H110M4-C2H
  • Product Requirements:
  • ATX/mATX case
  • Power supply
  • Supported processor
  • Supported RAM
  • Rest of system
  • Contents taken from below given ecs website :
  • https://www.ecs.com.tw/en/Product/Motherboard/H110M4-C2H/overview
