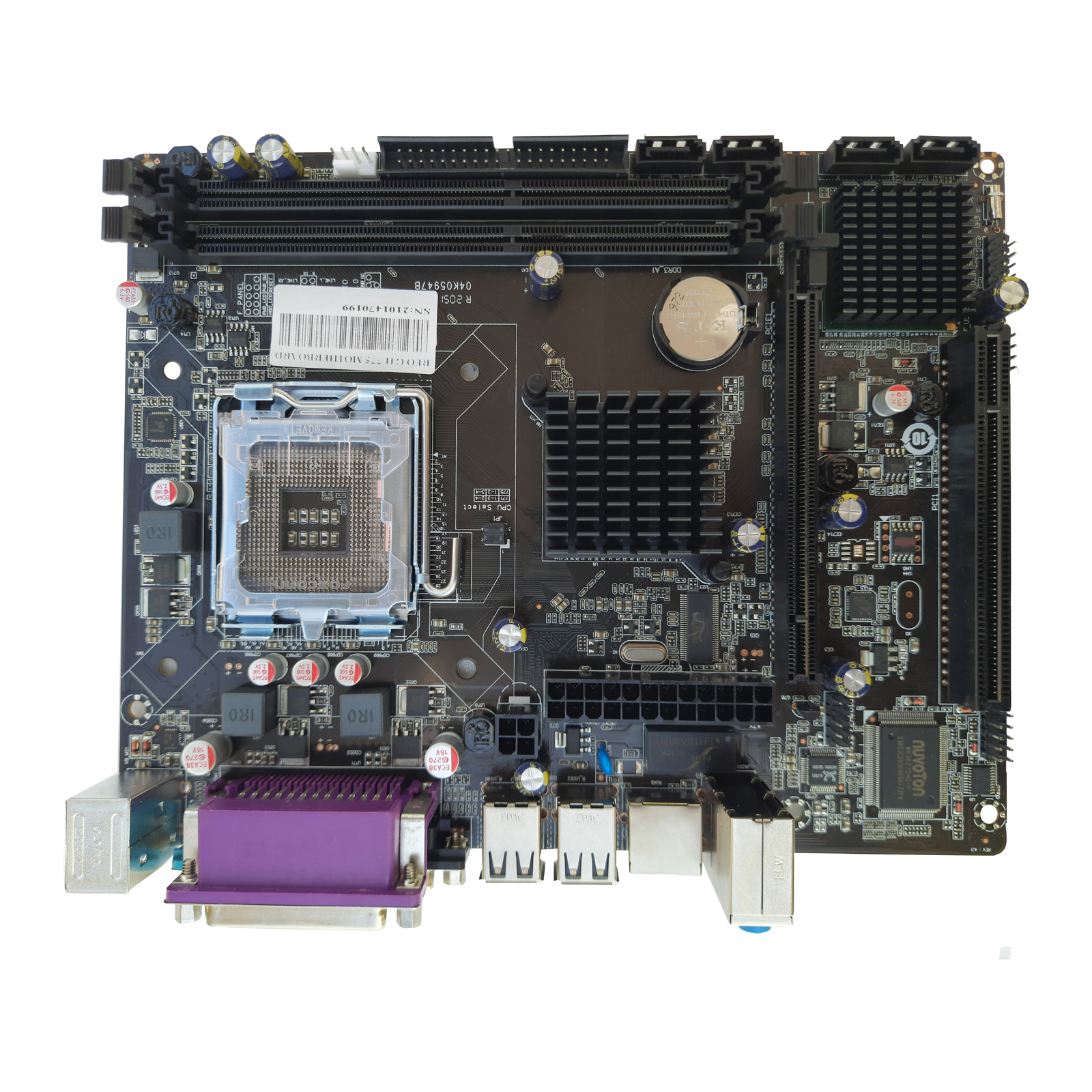

Upgrade your computer with a brand new REO 41 Socket 775 mATX Motherboard!
Based on the REO 41 chipset, the REO 41 supports Intel Core 2 Quad, Core 2 Duo, Pentium D, Pentium 4 and Celeron Socket 775 processors with up to 1333 MHz front side bus. Two 240-pin DDR3 DIMM slots support up to 8 GB of DDR3 1333 or 1066 MHz bus speeds.
Connect your PC to a network via its built-in 10/100 Ethernet port. Integrated Intel Graphics Media Accelerator 950 provides superior graphics support, or you can add a high-end video card to the PCI Express x16 slot. There is plenty of room for expansion with one PCI slots.
The REO G41 includes four on-board SATA connectors so you can add high speed SATA drives. Build a powerful socket 775 system with this REO G41 Socket 775 mATX Motherboard. Order today!
|
Features/Specifications: |
|
|
|
- REO G41 Socket 775 mATX Motherboard(Supports DDR3 Ram, Onboard Serial & Parallel Ports)
- General Features:
- mATX form factor
- Intel® G41 Express Chipset
- Socket 775 architecture
- Supports up to 8 GB DDR3 1333/1066 MHz system memory
- Integrated Intel Graphics Media Accelerator 950
- Realtek 6 Channel Audio Codec
- Realtek 10/100M LAN Controller
- Four (4) Serial ATA 1.5 GB/s ports
- One (1) IDE controller
- Expansion Slots:
- One (1) PCI Express x16 slot
- One (1) PCI slots
- Two (2) 240-pin DDR3 DIMM sockets

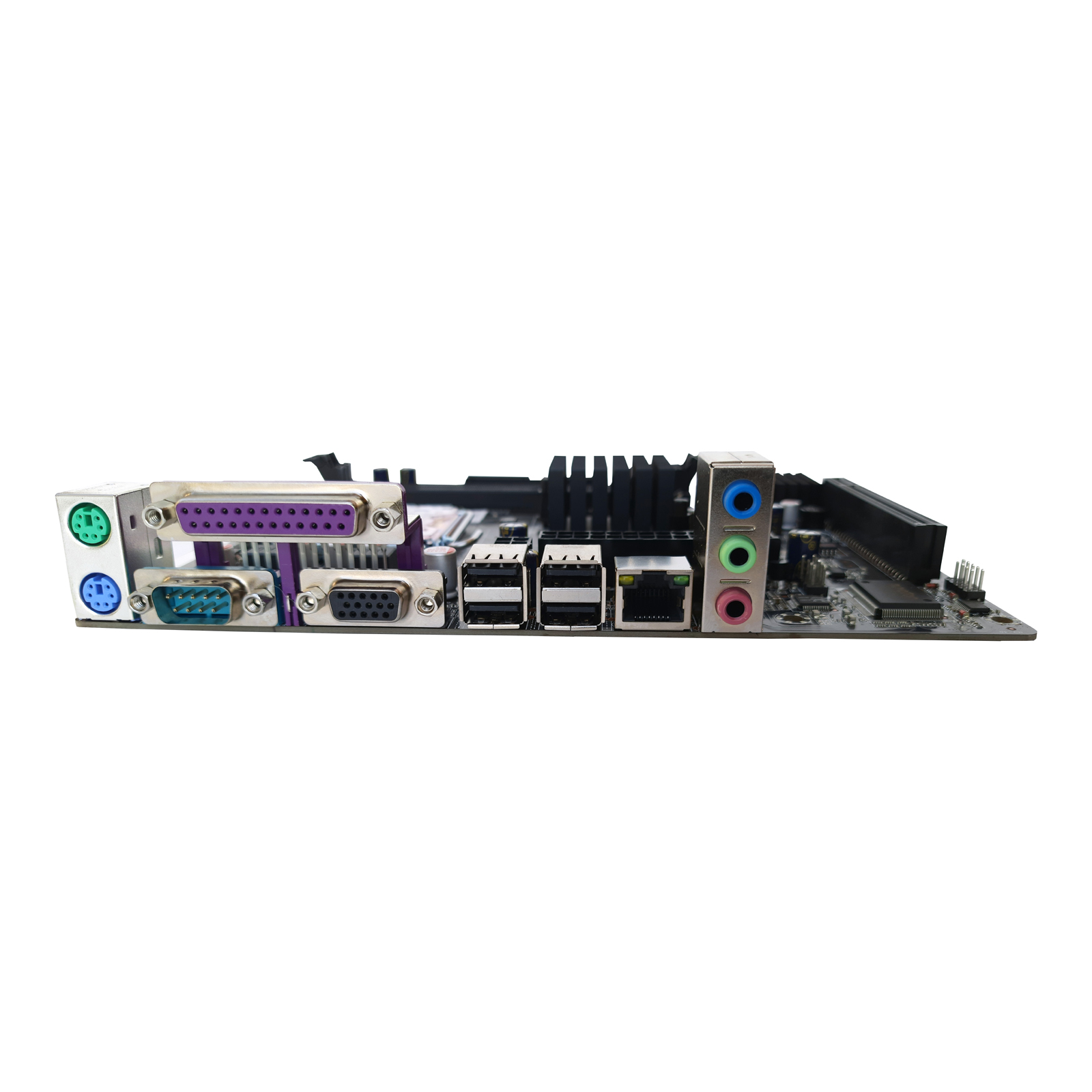

- I/O Ports:
- Two (2) PS/2 ports
- One (1) 9-pin Serial port
- One (1) Parallel port
- One (1) 15-pin VGA port
- Four (4) USB 2.0 ports
- One (1) RJ-45 Ethernet port
- Three (3) 3.5 mm audio jacks
- Internal I/O Ports:
- 24-pin ATX power connector
- 4-pin ATX12V power connector
- Two (2) USB 2.0 headers
- Four (4) Sata ports
- One (1) Battery Socket (3V)
- One (1) 4-pin CPU Fan connector
- One (1) IDE Controller
- Front panel header
- Speaker header
- Supported Processors:
- Intel Core 2 Quad processor with a 1333 MHz system bus
- Intel Core 2 Duo processor with a 1333 or 1066 or 800 MHz system bus
- Intel Pentium D processor with an 800 or 533 MHz system bus
- Intel Pentium 4 processor with an 800 or 533 MHz system bus
- Intel Celeron D processor with a 533 MHz system bus
- Box Dimensions : 25 W x 5 H x 18 D (CM)
- Box Weight : 630 grams
- Product Dimensions : 16.9 W x 3.6 H x 21.2 D (CM)
- Product Weight : 400 Grams
|
|
Package Includes: |
|
|
|
- REO G41 Socket 775 mATX Motherboard(Supports DDR3 Ram, Onboard Serial & Parallel Ports)
- Driver Disc
- SATA cable
- I/O shield
|
|
Additional Information: |
|
|
|
- Notes:
- Model: G41775SP
- The colour of the PCB and some ports may vary; please confirm with the buyer before purchasing. The image is only for representational purposes.
- Product Requirements:
- ATX/mATX case
- Power supply
- Supported processor
- Supported RAM
- Rest of system
|
|
