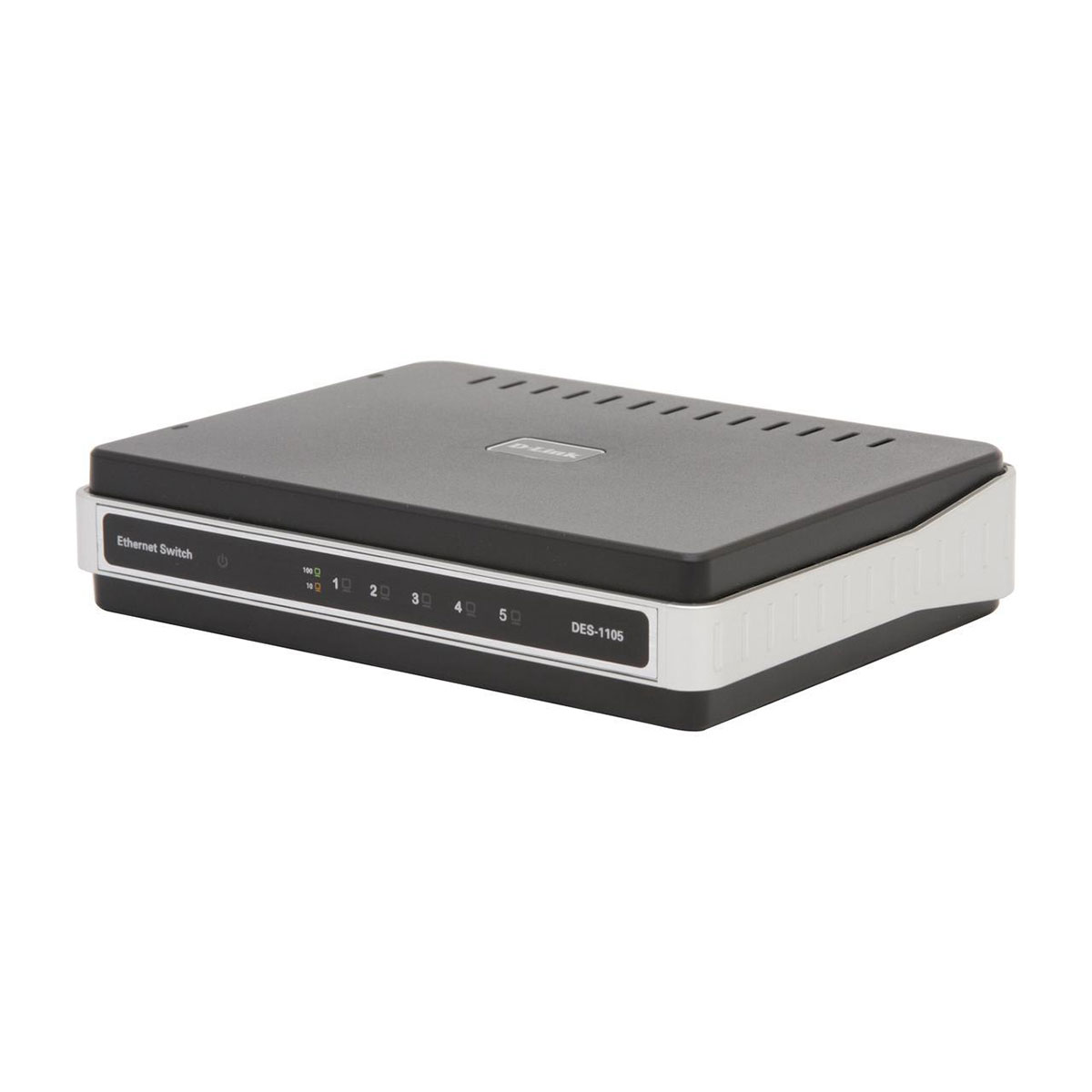

The D-Link DES-1105 5-port 10/100Mbps desktop switch expands your wired home network while delivering non-blocking wire-speed switching. This desktop switch fits virtually anywhere because of its compact size and can also be mounted on a wall or underneath a desk with the included wall mounting kit. By connecting this Desktop Switch to your router, you can add up to four more Ethernet-based devices to your home network, such as game console, printer, print server, Network-Attached Storage (NAS) and Internet camera. Easy to install and use, the D-Link DES-1105 offers great performance and value, a great solution for increasing the functionality of your network.
Half/Full-Duplex Compatible:
With full-duplex support, the D-Link DES-1105 works doubling the speed of normal half-duplex devices on each port, and is also compatible with half-duplex mode. On top of that, each port supports Auto-negotiation and Auto-MDI/ MDI-X, which facilitate installation and troubleshooting respectively.
Compact and Wall-Mountable :
The D-Link DES-1105 comes in a compact size for desktop use or mounting on a wall or underneath a desk with the included wall mounting kit.
|
|
|
Features/Specifications: |
|
|
|
- D-Link DES-1105 Unmanaged Desktop Switch
- General Features:
- Five (5) 10/100 ports
- Unmanaged switch
- 2K MAC address table size
- 1.0 Gbps switch fabric
- Store-and-forward transmission method
- True plug and play
- Supports up to 200 Mbps in dedicated bandwidth
- Standards:
- IEEE 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control
- LEDs:
- Per Unit : Power
- Per port: Link/Activity 10/100Mbps
- Environmental:
- Temperature: Operating: 0° - 50° C (32° - 122° F)
- Storage: -10° - 70° C (14° - 158° F)
- Humidity: Operating: 10% to 90% RH & Non-Condensing
- Storage: 5% to 90% RH & Non-Condensing
- Dimensions With Box : 2.75 x 10.75 x 8.25-inches (H x W x D, approximate)
- Weight with Box : 518 Grams(approximate)
- Product Dimensions : 1.25 x 5.9 x 4.25-inches (H x W x D, approximate)
- Product Weight : 390 Grams(approximate)
- Regulatory Approvals:
- FCC
- CE
|
|
Package Includes: |
|
|
|
- D-Link DES-1105 Unmanaged Desktop Switch
- Power Adapter
- CD-ROM with Product Documentation
- Screws
|
|
Additional Information: |
|
|
|
- Notes:
- Model:DES-1105
- Product Requirements:
- Computers with RJ-45 ports
- Ethernet cables
- Available power outlet
|
|
