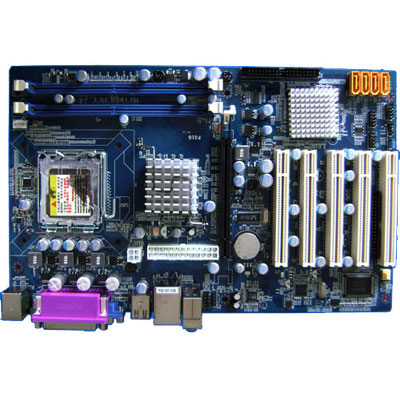

Model :
|
Reo P31G MB |
CPU :
|
LGA775 socket for latest Intel® Core 2 Quad/Core 2 Duo / Pentium Dual-core /Celeron D processors
|
FSB :
|
1333 / 1066 / 800 MHz
|
Chipset :
|
Intel® G31 & ICH7(North Bridge: Intel G31 South Bridge: Intel® ICH7)
|
Memory :
|
2 x 240-pin DDR2 DIMM socket support
Dual-channel DDR2 memory architecture. Support DDR2 800/667 DDR2 SDRAM |
Expansion Slot :
|
1 x PCI Express x16 slot
5 x PCI slots |
| Storage : |
Supported by Intel®ICH7, 2 x Ultra DMA133/100/66 devices, 4 x Serial ATAII 3.0Gb/s devices
|
Audio :
|
Realtek AC97 5.1 channel HD Audio Codec |
Lan :
|
Realtek RTL8100C 10/100 Lan |

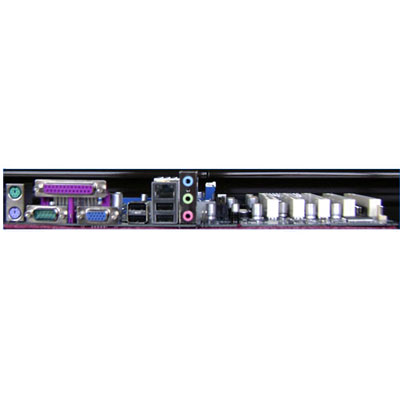

Rear Panel I/O :
|
1 x PS/2 keyboard & PS/2 mouse connectors
1 x Serial port (COM1)
1 x VGA port
1 x RJ45 LAN connector
4 x USB 2.0 ports
1 x Parallel port (LPT1)
1 x Audio port (Line-in, Line-out, Mic-in)
|
| INTERNAL I/O CONNECTORS & HEADERS : |
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector
1 x IDE connector
4 x Serial ATA connectors
1 x Speaker header
1 x IrDA for SIR header (optional)
2 x USB 2.0 headers support additional 4 USB ports
1 x Clear CMOS header
1 x Front panel switch/LED header
1 x Front panel audio header
1 x CD in header
CPUFAN/SYSFAN connectors
|
System BIOS :
|
AMI BIOS with 4Mb Flash ROM.
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI. Supports ACPI revision 1.0 specification |
Form Factor :
|
ATX Size, 293mm * 185mm |
