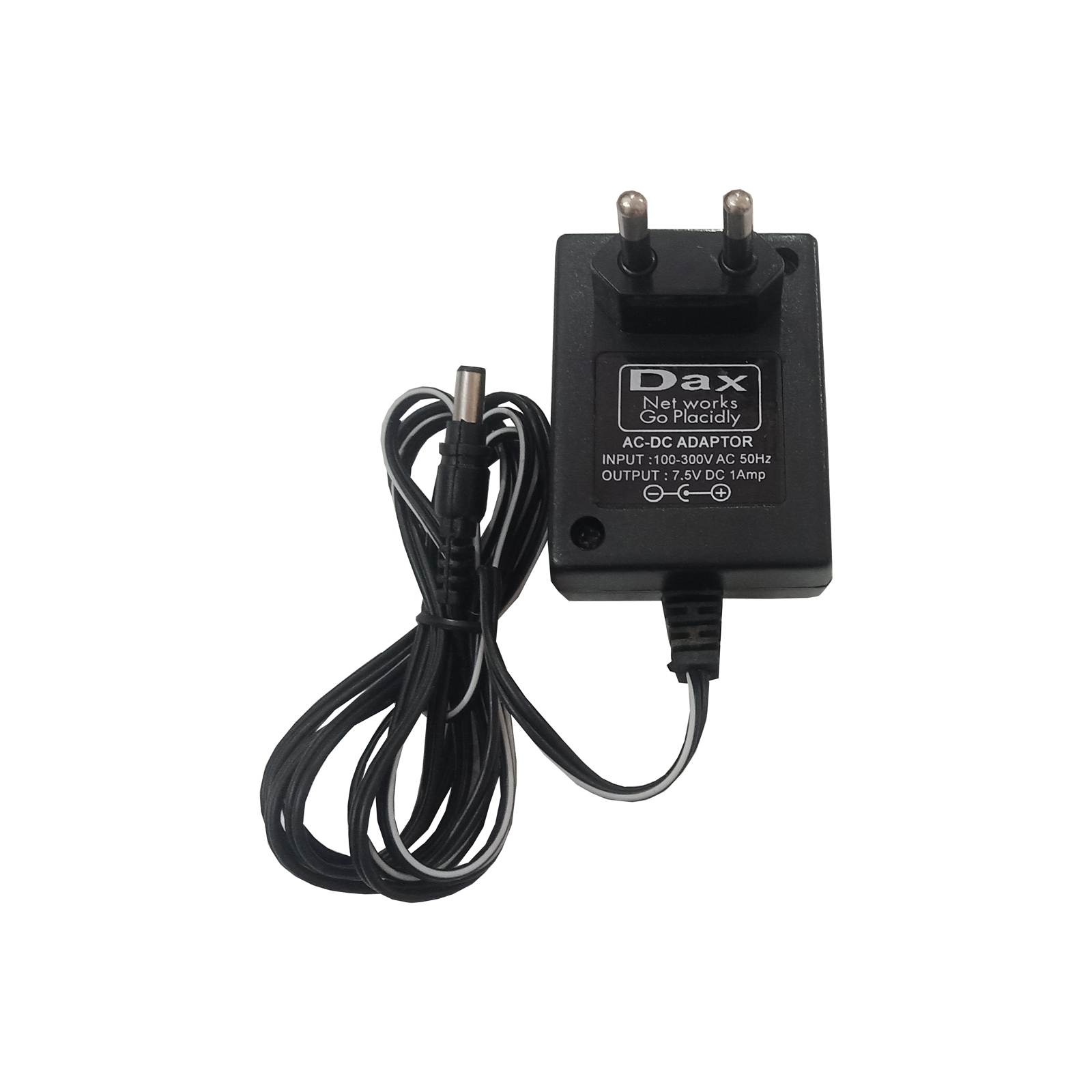

The standard power supply unit is 100~240V AC power supply. 48V DC and 18~32V DC
power supply units are available as optional for 8 port 10/100 switch, 48V DC power supply
unti is available for 16 port 10/100 switch, and must be ordered separately. Refer ordering
information.
Specifications
Ports:8 # 10/100 BASE-TX Ports 16 # 10/100 BASE-TX Ports
Transmission Method:Store and Forward
Duplex Modes:Auto-Negotiation
Crossover:RJ-45 ports supporting Auto MDI/MDIX
Forwarding Rates:100 Mbps port – 148,800pps
10 Mbps port – 14,880pps
Backplane Bandwidth:1.6 Gbps, 3.2 Gbps
Standards:IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
Transmission Media:10BASE-T: Cat. 3, 4, 5 UTP
100BASE-TX: Cat. 5 UTP

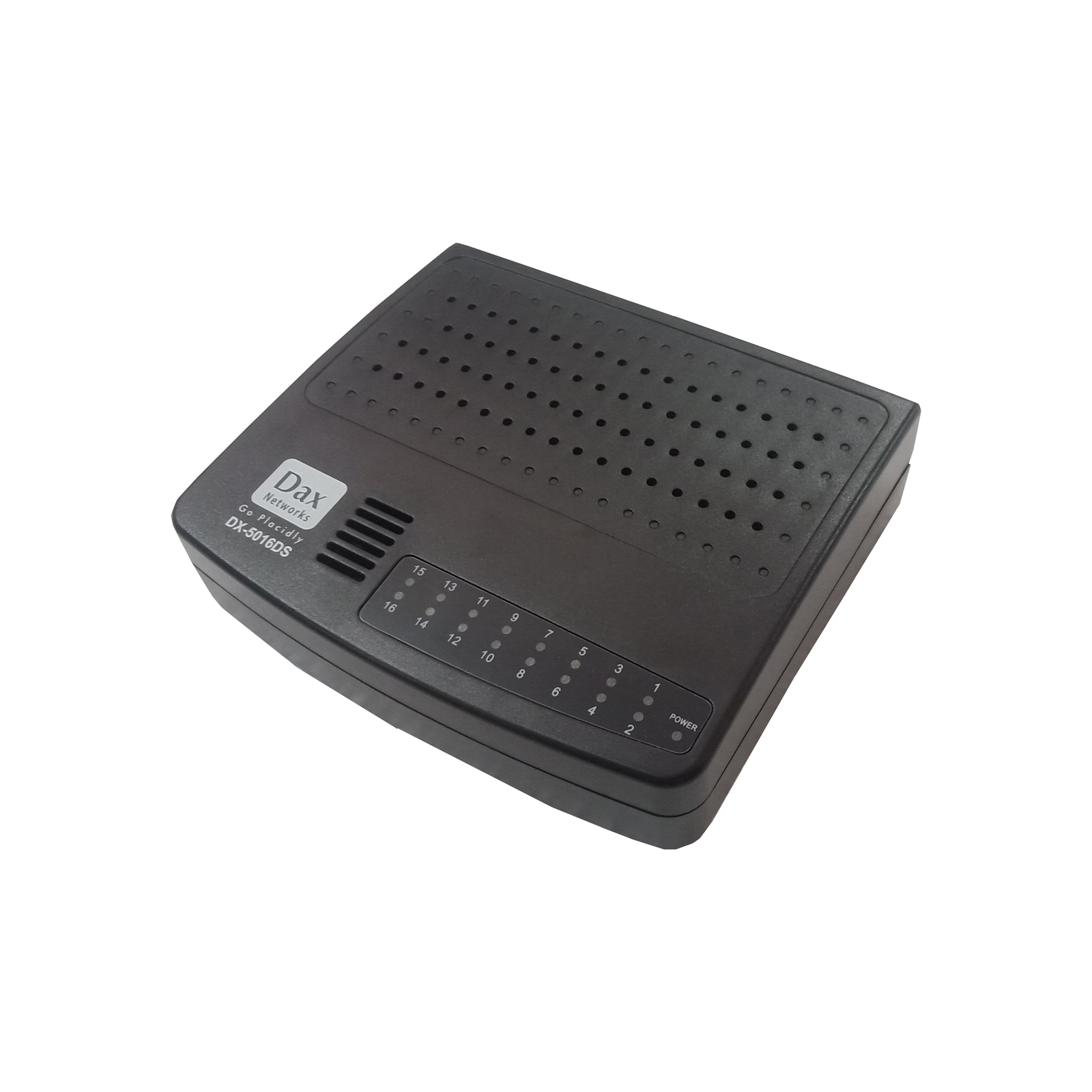

LED Indicators:Per Unit: Power,Per Port- LINK Status, Port activity status, Link speed
Operating Humidity:10%~90%, non-condensing
Storage Humidity:10%~90%, non-condensing
Operating Temperature:0°C~40°C
Storage Temperature:-40°C~70°C
Power Consumption:7.5 Watts (Max)
Certifications:FCC Class A,CE
General
Installation
Plug and Play
Management Protocols
CSMA/CD
Features
3.2 Gbps bandwidth, Auto detection of full duplex / half duplex mode,Store – and – forward architecture, MAC address auto-learning and auto-aging, Windows, Mac OS
Certifications
FCCClassA, CE
