Expand productivity:
A flexible computing environment helps to stay productive, whether the user working in main office, a satellite office or a home office. That is the idea behind the HP USB 2.0 Docking Station. The HP USB 2.0 Docking Station uses universal USB technology to pass through critical signals such as video, audio, LAN and peripheral connectivity (keyboard, mouse, printer).
Universal USB technology:
Since USB is a widely adopted industry standard, it is perfect for notebook computers that do not have an integrated docking connector. Users can just plug the dock into their USB port and extended their notebook for a true desktop experience.
Smart and flexible:
The HP USB 2.0 Docking Station is designed to bring maximum productivity to users with minimal installation issues. Unlike other docking stations, the HP device has flash memory with installation ready software drivers that detect when a computer is connected and guide users through a simple installation wizard. There is no need to install software from a CD, another benefit for notebook computers that do not have an optical drive. This dock is also Hot Dockable which means there is no need to reboot when it is connected for a quick and seamless docking experience.
|
Features/Specifications: |
|
|
|
- HP 500476-001 - USB 2.0 Docking Station
- Specifications :
- The HP USB Docking Station can pass video signal to one display at a time (VGA or DVI).
- Input power AC power adapter (Input: DC5V 4A )
- Video Support Multiple video mode (Primary, Extended, Mirror)
- Supports 16-bit and 32-bit color depth
- LED indicator Power on LED (blue)

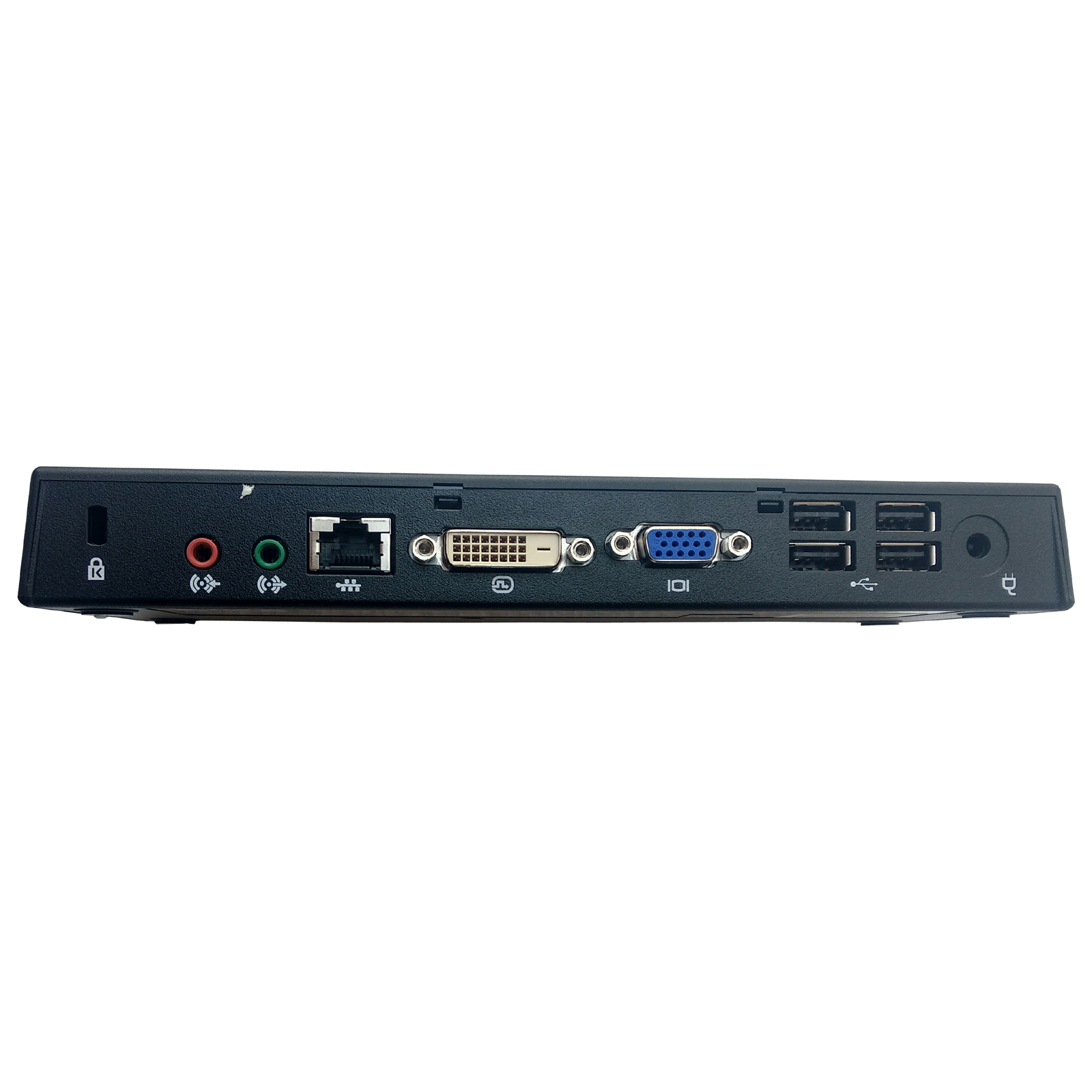

- Ports :
- 1 Port x USB 2.0 upstream UXGA (1600 x 1200), WSXGA+ (1680 x 1050) support
- 4 Port x USB 2.0 downstream
- 1 Port x DVI
- 1 Port x VGA
- 1 Port x Ethernet(RJ45)
- Digital video compression Display Link video compression chipset and software External monitor port (VGA Analog RGB D-sub15pin) External monitor port (DVI-D)
- Ethernet RJ-45 IEEE802.3 10Base-T, 100Base-TX compatible
- Audio-out (headphone) jack
- Flash memory 1GB flash memory to support on-board drivers
- Audio-in (microphone) jack
- Security Kensington lock slot
- USB Upstream connector is type B; USB hub is USB 2.0 compliant
- Compatibility HP Business Notebooks including the 21401, 500 series, s-series, b-series, p-series, w-series or any notebook computer supporting USB 2.0 should be compatible.
- Power Adapter Specifications:
- Input power AC power adapter (Input: DC5V 4A)
|
|

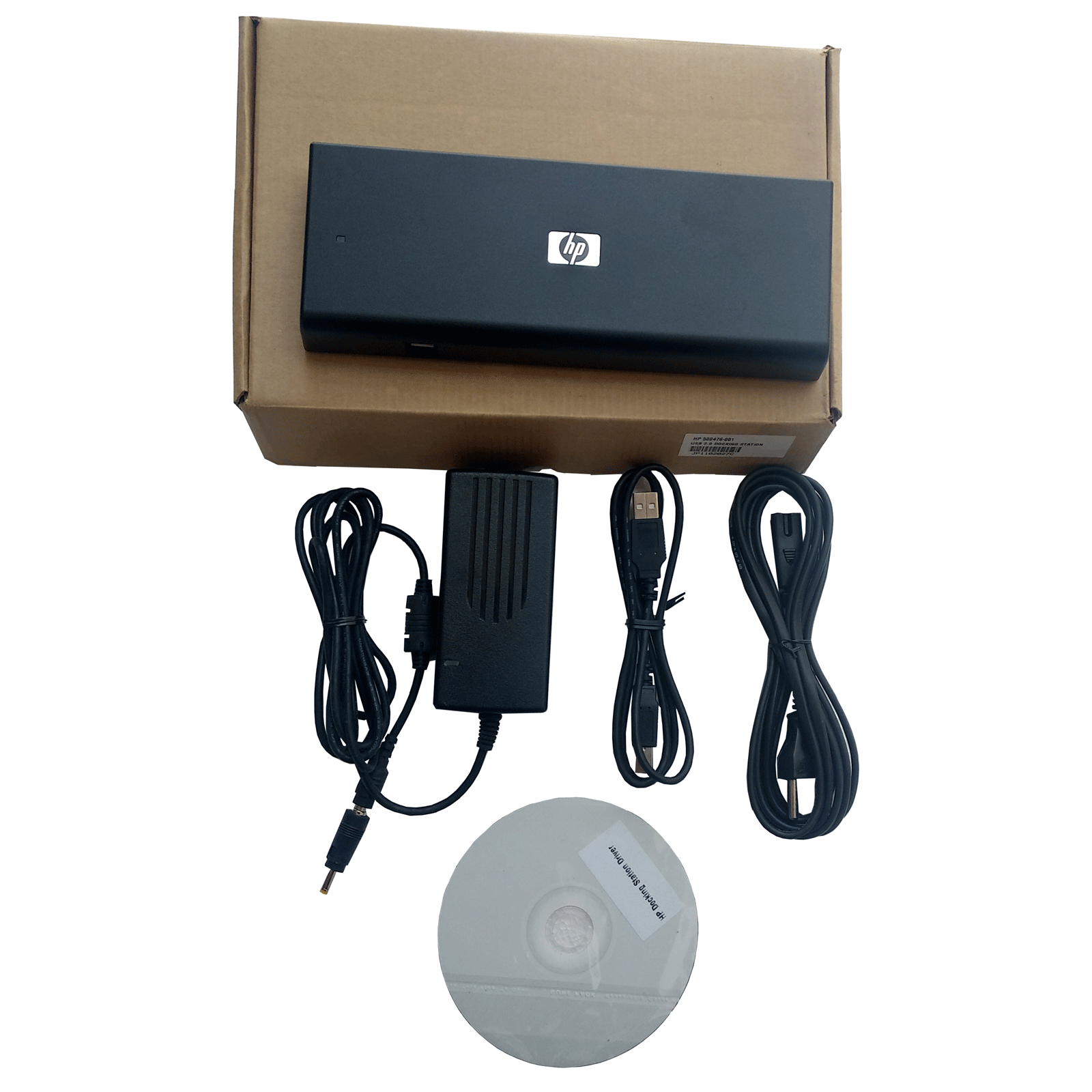

Package Includes: |
|
|
|
- HP 500476-001 - USB 2.0 Docking Station
- Power adapter
- USB cable
|
|
Additional Information: |
|
|
|
- Notes:
- Part Number: FQ834AA#ABA FQ834UT#ABA
- UPC code: 884420395744, 884420451723
- Product Requirements:
- Available Power Outlet
- Available USB 2.0
|
|
