Get your system up to speed by upgrading to this MSI 848P Neo2-V Socket 775 ATX motherboard!
This MSI 848P Neo2-V Socket 775 ATX motherboard is based on the Intel 848P & ICH5 chipset and features two 184-pin DIMM sockets with support of up to 2 GB of DDR RAM! The Realtek ALC655 Audio CODEC delivers high-quality 6-channel audio for a more vivid sound experience and the Realtek RTL8100C Fast Ethernet controller provides 10/100 Mbps solution to your network connection!
This MSI 848P Neo2-V motherboard provides two Serial ATA controllers and two IDE channels. Add powerful graphics processing power to the AGP 8x/4x slot and experience fast transfer speeds of up to 480 Mbps with its eight USB 2.0 ports!
This MSI 848P Neo2-V motherboard supports Intel Pentium 4 and Celeron D Socket 775 processors, 800 MHz Front Side Bus and Intel Hyper-Threading Technology! Get yours today!
Order now!
| |
Features/Specifications: |
| |
|
| |

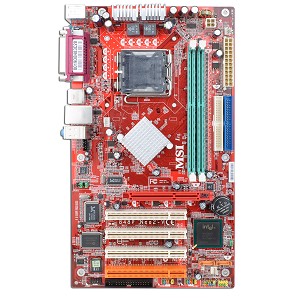

- MSI 848P Neo2-V Intel 848P Socket 775 ATX Motherboard
- General Features:
- Intel 848P + ICH5 chipset
- Socket 775 architecture
- ATX form factor
- Supports up to 2 GB DDR400/333/266 MHz RAM
- Integrated Realtek RTL8100C PCI 10/100 Fast Ethernet controller
- Integrated Realtek ALC655 audio codec
- Two (2) Serial ATA 1.5Gb/s connectors
- Two (2) ATA/100 IDE connectors
- 24-pin ATX power connector
- 4-pin ATX12V power connector
- Expansion Slots:
- Four (4) PCI slots
- One (1) AGP 8x/4x slot
- Two (2) 184-pin DIMM slots
- I/O Ports:
- Eight (8) USB 2.0 ports (four rear, four via two internal headers)
- Two (2) PS/2 ports
- One (1) Parallel port
- One (1) 9-pin Serial/COM port
- One (1) RJ-45 LAN port
- Line in, line out, microphone audio jacks
- Supported Processors:
- LGA775 for Intel Pentium 4 & Celeron D processors
- Supports 800/533 MHz FSB speeds
- Supports Hyper-Threading Technology
- Regulatory Approvals:
- FCC
- CE
- MIC
|
| |

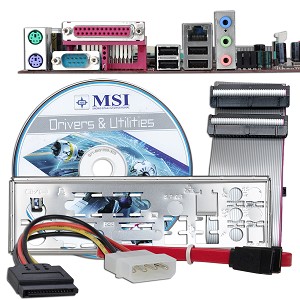

Package Includes: |
| |
|
| |
- MSI 848P Neo2-V Intel 848P Socket 775 ATX Motherboard
- I/O shield
- Serial ATA data cable
- IDE cable
- Drivers & Utilities CD
- User Manual
|
| |
Additional Information: |
| |
|
| |
- Notes:
- Model: 848P Neo2-V
- UPC: 8 16909 01162 3
- EAN: 4 719072 015367
- Does not support simultaneous front and rear audio port operation
- Product Requirements:
- Supported RAM
- Supported processor
- ATX case
- ATX power supply
- The rest of the system
|
|
